Roller Door Heavy Duty Reed Switch, 48mm, 480mm Armoured Cable, 30mm Gap

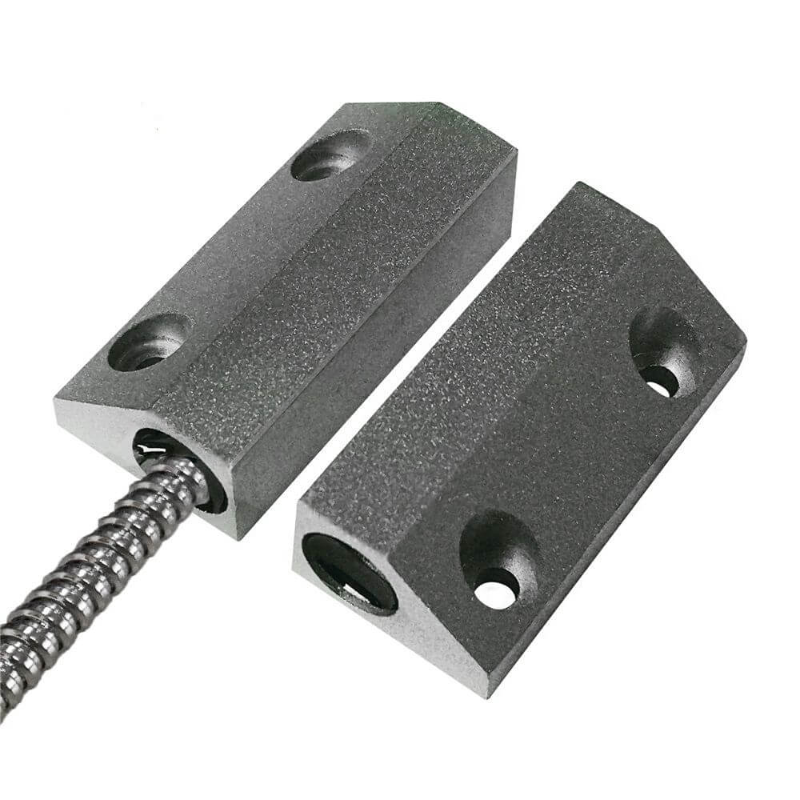

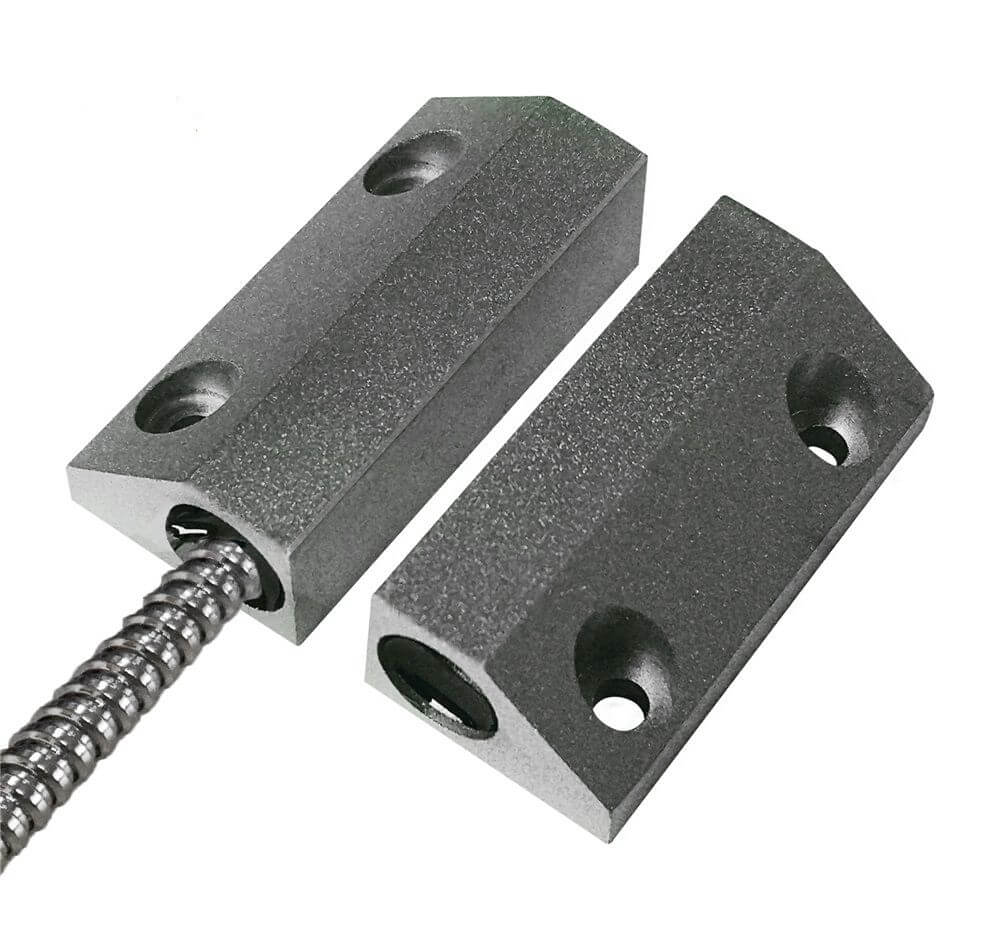

The X2-REED-301 is a mini heavy-duty metal reed switch supplied with 480mm of armoured cable. It is used to detect the open / closed state of doors or windows and is ideal for fire doors, roof hatches or anywhere requiring the robustness of a smaller sized heavy-duty reed switch.

  • Small form factor
  • Heavy duty metal cased
  • Armoured cable
  • Approved: CCC / CE / FCC / RoHS
  • Contact type:NC
  • Max. switching voltage: 100V DC/AC
  • Max. switching current: 0.5A
  • Operating load: 10W
  • Working temperature: -20 to 80degC
  • Working life: >100000 times
  • Connection type:480mm armoured cable
  • Material: Zinc alloy
  • Colour: Silver
