Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap

Home // Alarm Equipment // Alarm Peripherals // Reed Switches // Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap
Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap



Code: CSD-2000
Brand: Generic
Product Details

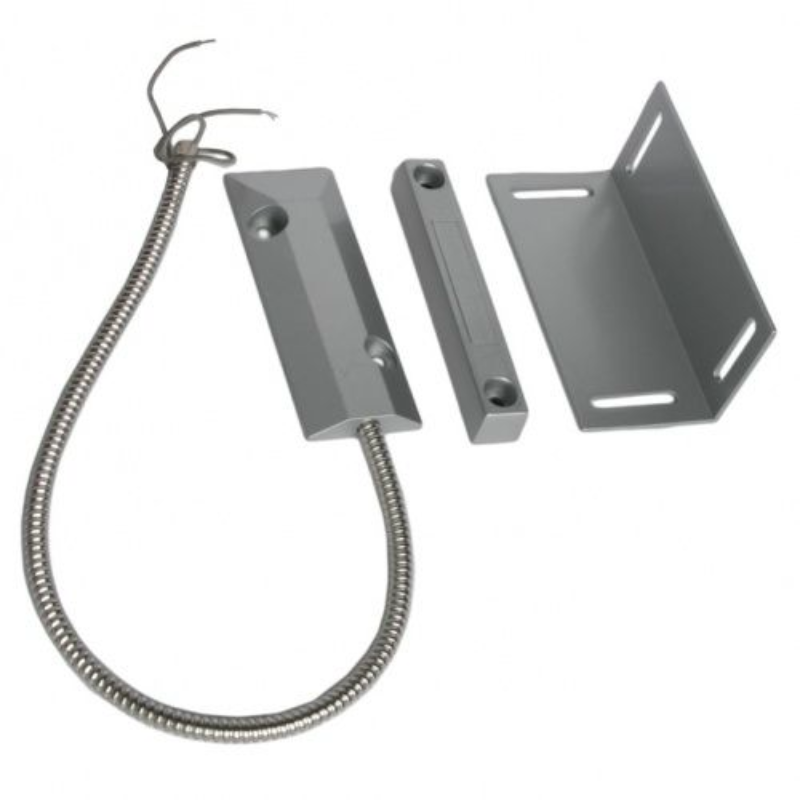

Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap

  • Reed switch 106 x 36.5 x 10mm
  • Magnet 106 x 15.5 x 16mm
  • Bracket 107 x 50 x 50mm
  • Gap 65mm
  • Extra wide gap
  • 350mm armoured cable (stainless)
  • Robust constructed and epoxy sealed to ensure that there is no corrosion
  • Universal mounting with L bracket
  • Contact: NC, SPST
  • Rating (max): 10W
  • Voltage (max): 100VDC
  • Current (max): 500mA
  • Reed: Epoxy sealed
  • Dimensions:
    • Armoured cable: 630mm
    • Reed switch: 106 x 36 x 10mm
    • Magnet: 106 x 15 x 16mm
    • Bracket: 106 x 50 x 50mm
  • Gap: 50mm
