Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg

Home // CCTV // Networking Equipment // Ubiquiti Networks // airMAX Antennas // Wireless Systems // Ubiquiti Networks // airMAX Antennas // Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg
Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg



Code: UB-AM-5G17-90
Brand: Ubiquiti
Product Details

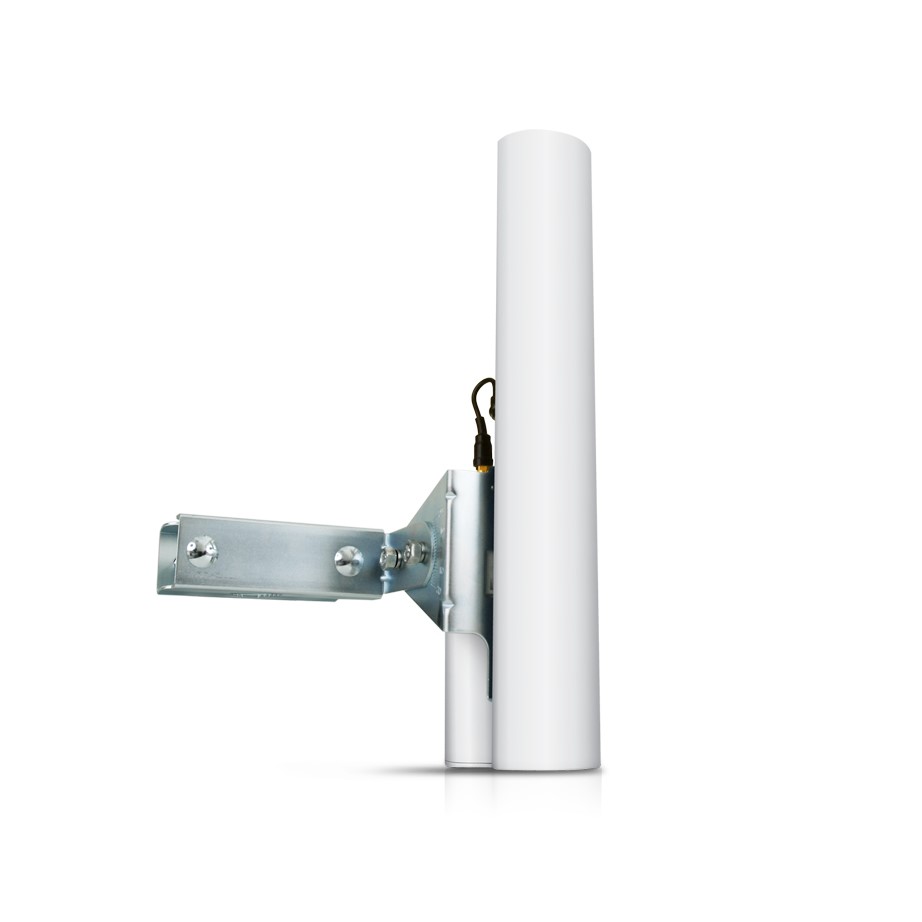

Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg

Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting bracket and weatherproof RF jumpers included.

  • Frequency range: 4.90-5.90 Ghz
  • Gain: 16.1-17.1dBi
  • Polarisation: Dual linear
  • Cross-pol isolation: 22dB min.
  • Max VSWR: 1.5:1
  • Hpol beamwidth (6dB): 72deg
  • Vpol beamwidth (6dB): 93deg
  • Elevation beamwidth: 8deg
  • Elevation downtilt: 4deg
  • Dimensions: 367 x 63 x 41mm
  • Weight: 1.1kg

Availability Alternative

  • Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 20dBi 90 deg
    UB-AM-5G20-90
    Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 20dBi 90 deg
