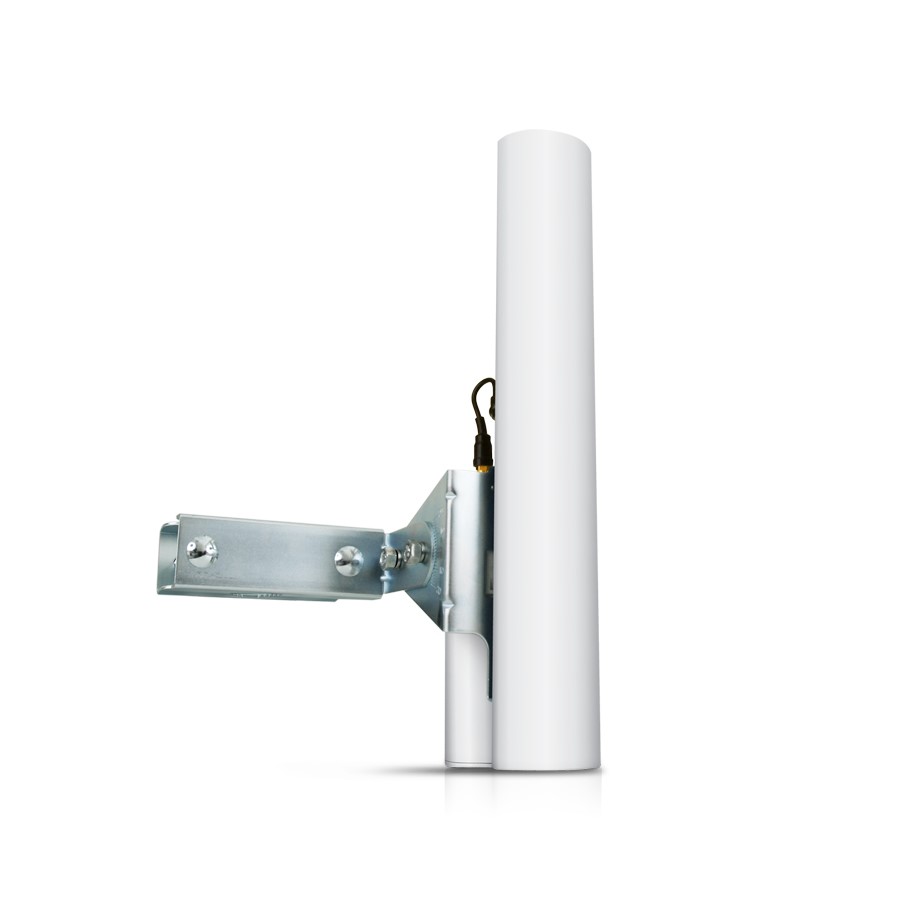

Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 16dBi 120 deg



Code: UB-AM-5G16-120
Brand: Ubiquiti
Product Details
Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 16dBi 120 deg

Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting bracket and weatherproof RF jumpers included.

  • Frequency range: 5.10-5.90 Ghz
  • Gain: 15.0-16.0dBi
  • Polarisation: Dual linear
  • Cross-pol isolation: 22dB min
  • Max VSWR: 1.5:1
  • Hpol beamwidth (6dB): 137 deg.
  • Vpol beamwidth (6dB): 118 deg.
  • Elevation beamwidth: 8 deg.
  • Elevation downtilt: 4 deg.
  • Dimensions: 367 x 63 x 41mm
  • Weight: 1.1kg

Availability Alternative

  • Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 19dBi 120 deg
    UB-AM-5G19-120
    Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 19dBi 120 deg
