Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 20dBi 90 deg

Home // CCTV // Networking Equipment // Ubiquiti Networks // airMAX Antennas // Wireless Systems // Ubiquiti Networks // airMAX Antennas // Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 20dBi 90 deg
Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 20dBi 90 deg



Code: UB-AM-5G20-90
Brand: Ubiquiti
Product Details
Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 20dBi 90 deg

Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Mounting bracket and weatherproof RF jumpers included.

  • Frequency range: 5.15-5.85 Ghz
  • Gain: 19.4-20.3dBi
  • Polarisation: Dual linear
  • Cross-pol isolation: 28dB min.
  • Max VSWR: 1.5:1
  • Hpol beamwidth (6dB): 91deg
  • Vpol beamwidth (6dB): 85deg
  • Elevation beamwidth: 4deg
  • Elevation downtilt: 2deg
  • Dimensions: 700 x 145 x 93mm
  • Weight: 5.9kg

Availability Alternative

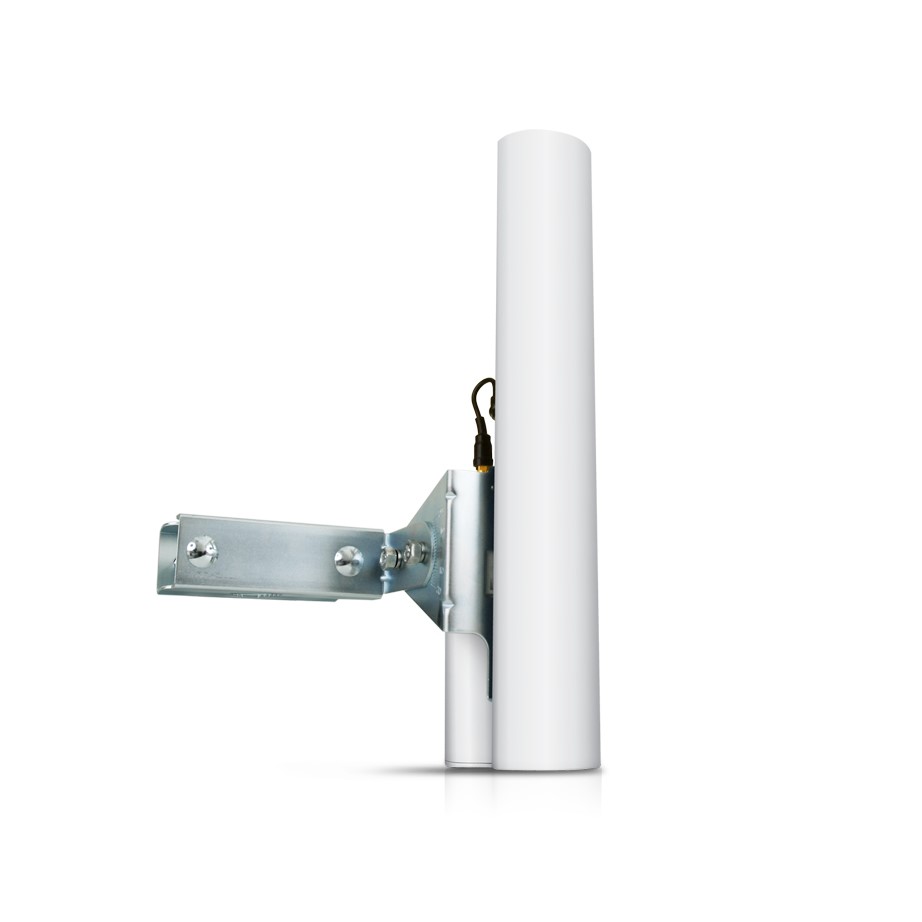

  • Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg
    UB-AM-5G17-90
    Ubiquiti 4.9-5.9GHz AirMax Base Station Dual Polarity Sector Antenna, 17dBi 90 deg
