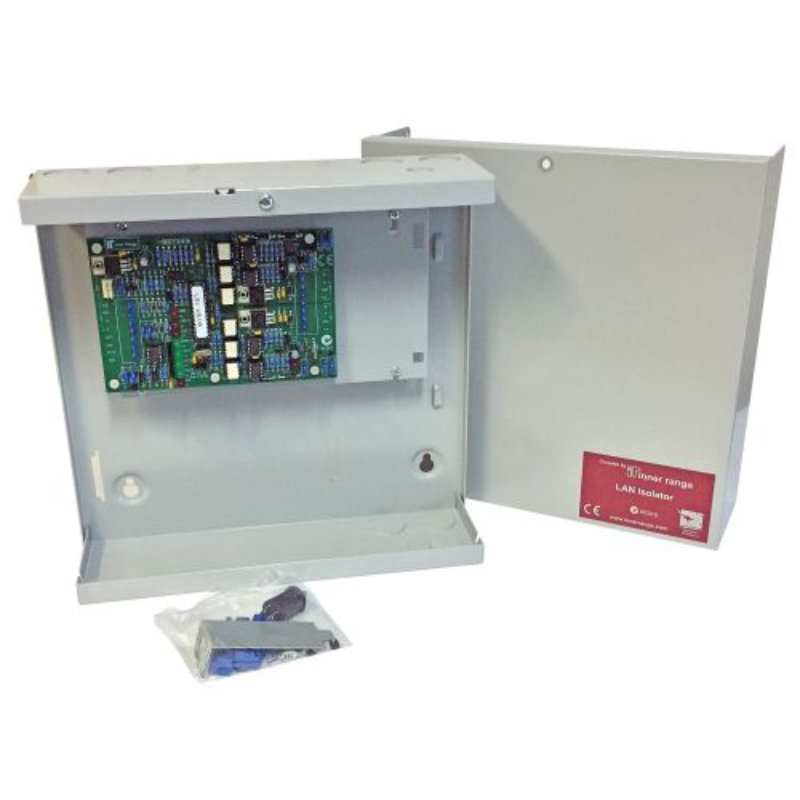

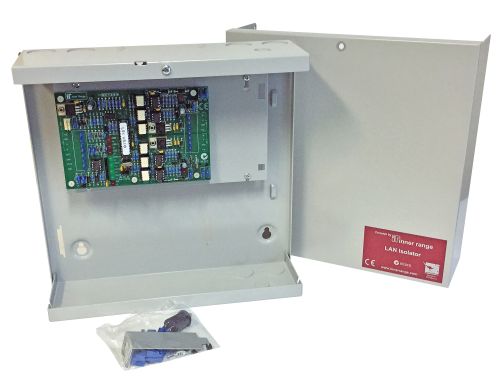

LAN Isolator in Extra Small Metal Enclosure

The LAN Isolator affords a Concept system with optical Isolation of LAN wiring. It has 2 optically isolated sections (branches) which can be combined to work in an optional LAN loop mode. The elimination of electrical connection between LAN sections serves as a means to break earth loops as well as extending the length of the LAN. Each LAN Isolator amplifies the signal and provides an additional 1500m of LAN distance. In addition to this, the LAN Isolator monitors its LAN sections and can isolate sections of the LAN where problems are discovered. Also provided are outputs to indicate the status of the LAN allowing LAN section status and alarms to be reported as required.

• 5kV isolation between LAN sections
• Improved anti-surge protection
• Improved signal to noise ratio over longer cable runs
• Supports loop and branch ("Y") configurations
• Provides sections of the LAN from faults or tampering in other sections

Datasheets

• IR-995080 Datasheet.pdf

• 305mm(L) x 140mm(W) x 72mm(D)
• 11-14V DC input voltage to PCB (from LAN or separate battery backed external power supply)
