Fibre Modem - Multi Mode PCB & Kit

Fibre Modem - Multi Mode PCB & Kit



Code: IR-995081
Brand: Concept
Product Details

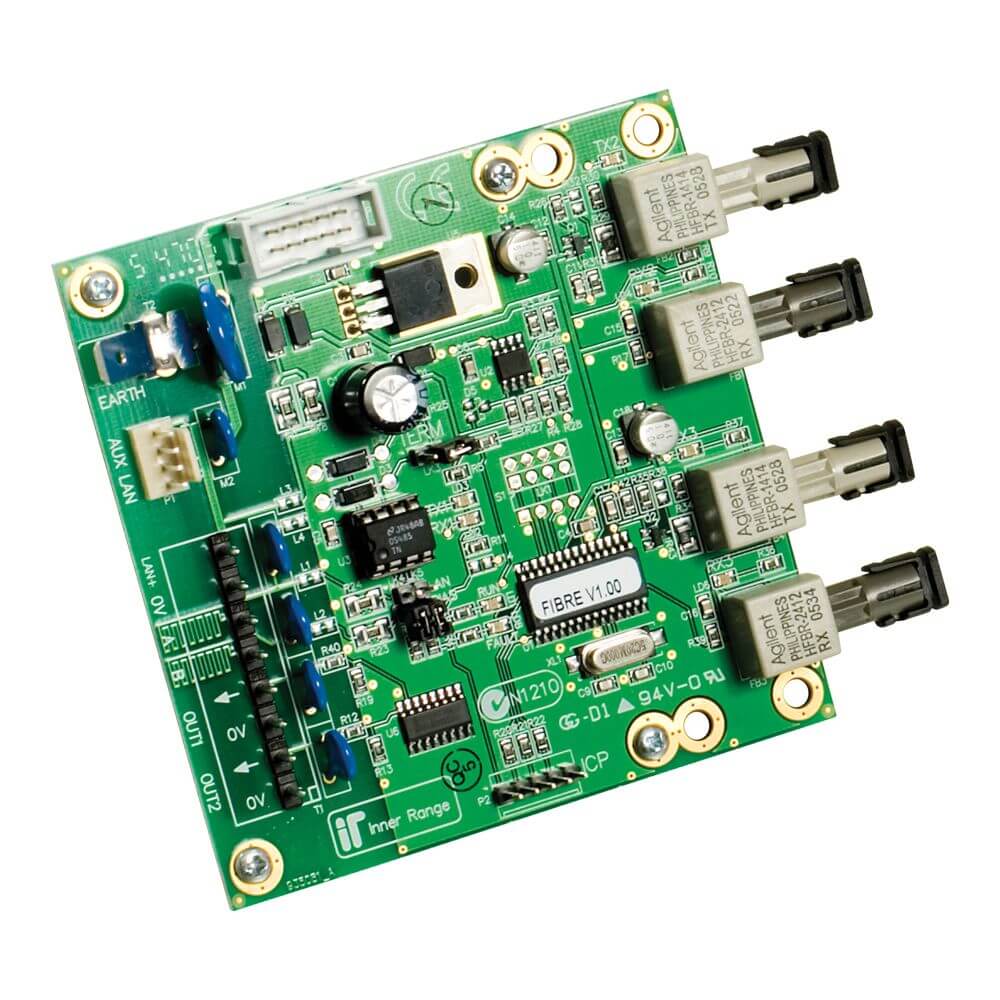

Fibre Modem - Multi Mode PCB & Kit


The Inner Range Fibre Modem provides two separate, optically isolated ports to the Concept system LAN. A set of Fibre Modems are ideal for applications where modules in a Concept system are in different buildings and/or are separated by large distances. The modems have two fibre ports which enable sets of Fibre Modems to be arranged in branch or loop configurations. Each fibre port utilises a pair of fibres per link to provide full-duplex communication. Up to 5 Fibre Modems can be connected in series. Both Single Mode and Multimode versions of the Fibre Modem are available.

  • Electrical isolation from the remote LAN
  • Fibre links immune to earth loops and induced noise
  • Immune to propagation of electrical pulses due to lightning
  • Supports loop and branch ("Y") configurations
  • PCB: 96mm(L) x 96mm(W)
  • 11-14V DC (from LAN or separate battery backed external power supply) @ 20mA minimum operational current(max 120mA)

Availability Alternative

  • Fibre Modem - Single Mode PCB & Kit
    Fibre Modem - Single Mode PCB & Kit
