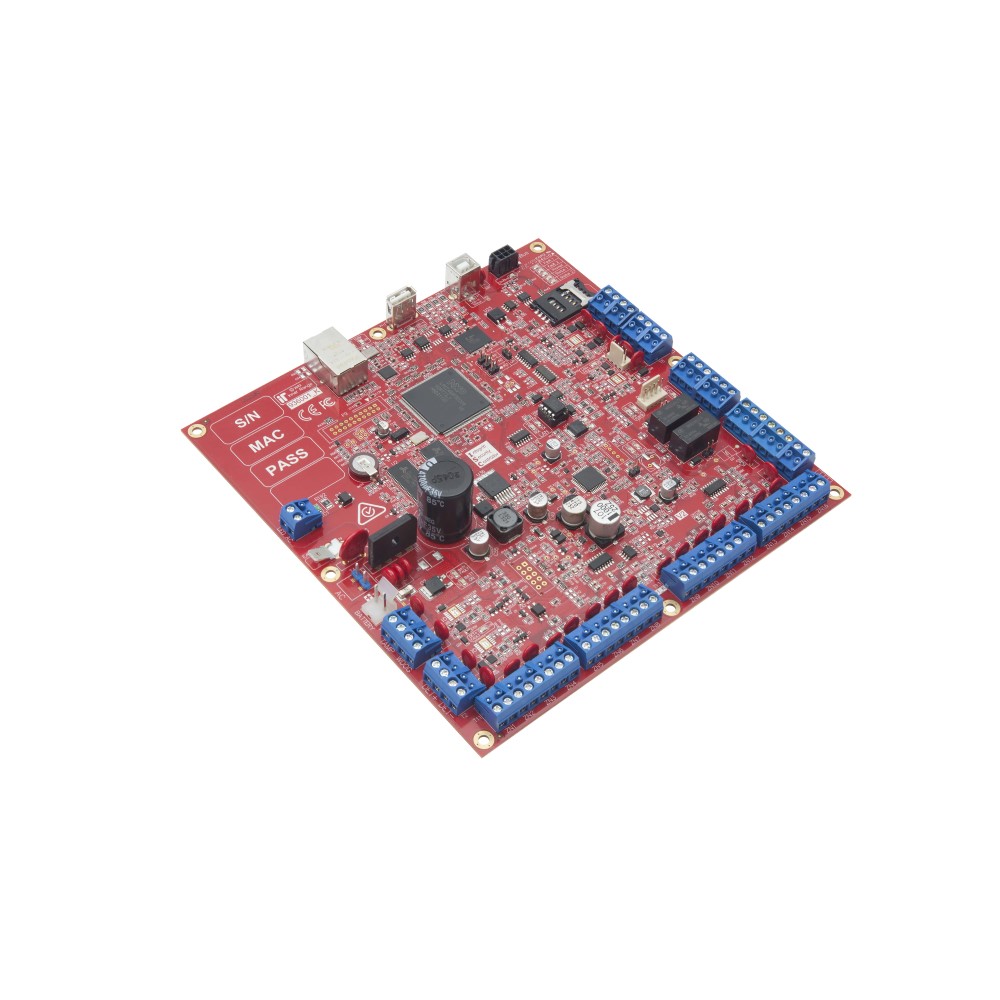

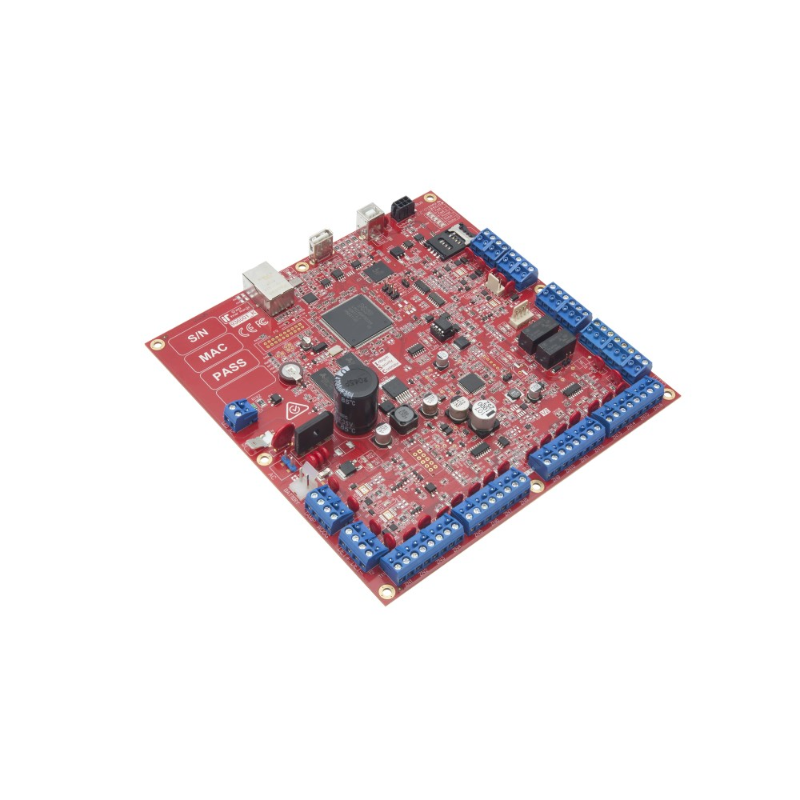

The IR-996001IPAUPSB is an IP-based master controller for the Integriti modular hardware system. Equipped with 16 zone inputs, 2 auxiliary relay outputs, power supply, ethernet port, and internal/external siren outputs, the ISC can be used either stand-alone or expanded further via its UniBus and RS-485 Sub-LAN ports. The flexible, modular design of the ISC allows a single stand-alone controller to be expanded to form a network of IP or RS-485 expansion modules supporting up to 3,000 zone inputs, 3,000 outputs, 250 areas and over 1,000 card readers and 250 doors. User capacity of up to 100,000 is available, and capacity for 1,000,000 users is also available with the user expansion kit (IR-996002L5).

The ISC also offers a UniBus in-cabinet expansion interface where a variety of UniBus I/O and communications devices can be connected directly to the controller and housed within the same tamper-protected enclosure. Integriti's multi-controller architecture allows any number of ISC's to be combined within the Integriti software package to form a globally managed small, medium or enterprise sized system where the entire network of controllers is managed as a whole. This architecture allows for an infinite number of Readers, Doors, Areas, Zone Inputs and Outputs.

The IP only ISC does not include a modem dialler for traditional PSTN based alarm reporting. Alarm reporting can be achieved to a Multipath-IP enabled control room using SkyTunnel over Ethernet or by using a T4000 alarm communicator connected via serial cable.

1 x IR-996795 comes included.
