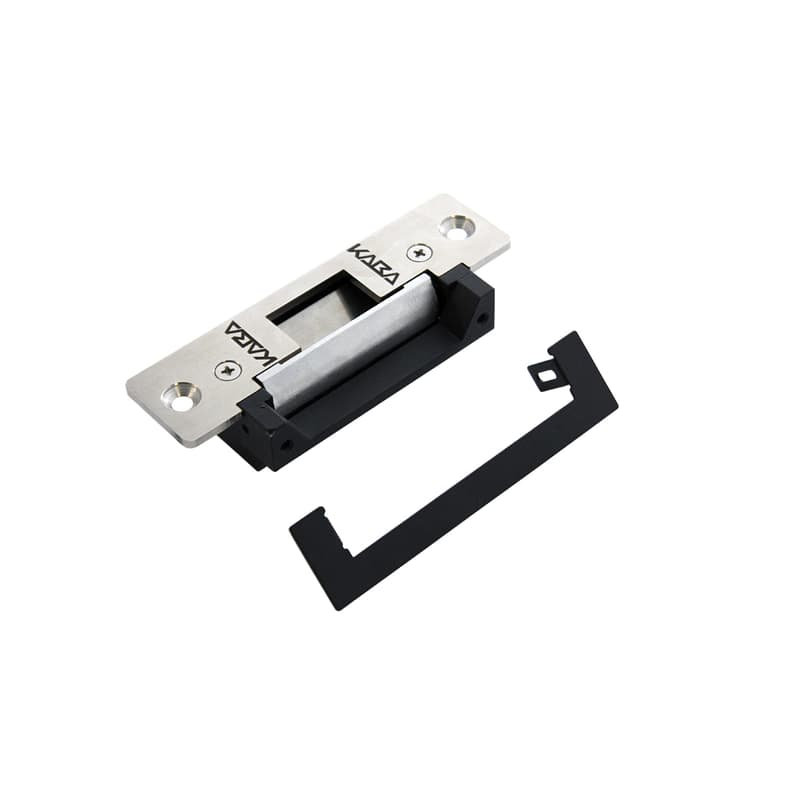

Dormakaba KES100 ANSI Electric Strike, Non Monitored, 12/24V DC

DK-KES100
AVAILABLE TO ORDER
Dormakaba KES100 ANSI Electric Strike, Non Monitored, 12/24V DC

The Dormakaba DK-KES100 ANSI electric strike is an economical choice, offering dual voltage 12/24V as standard and an interchangeable fail safe/fail secure feature. It is constructed of solid zinc alloy housing, a stainless-steel keeper and face plate. Designed for use with large selection of morticed type locks and sporting a keeper depth of 16mm it also includes a 202mm long face plate, making a single model suitable for all types of wooden, steel, and aluminium door frames. It is supplied as standard with trim plate to cover any damage to frame during installation.

  • Fail safe/fail secure configurable
  • 16mm keeper
  • Includes long face plate for timber frame installation
  • Includes trim plate
  • Optional lip extension brackets

  • Dimensions: 124L x 43.5W x 29.5D(mm)
  • Holding strength: 700kg
  • Operating voltage: 12/24VDC
  • Voltage tolerance: +/-15 percent
  • Current draw: 250mA/12VDC, 150mA/24VDC
  • Operating Temperature: -10 - +45 degrees Celsius
  • Humidity: 0 - 95 percent
  • Latch Throw: 19mm
  • Material: zinc alloy body, stainless steel faceplate and keeper

No description available for this product
  • Dimensions: 124L x 43.5W x 29.5D(mm)
  • Holding strength: 700kg
  • Operating voltage: 12/24VDC
  • Voltage tolerance: +/-15 percent
  • Current draw: 250mA/12VDC, 150mA/24VDC
  • Operating Temperature: -10 - +45 degrees Celsius
  • Humidity: 0 - 95 percent
  • Latch Throw: 19mm
  • Material: zinc alloy body, stainless steel faceplate and keeper
