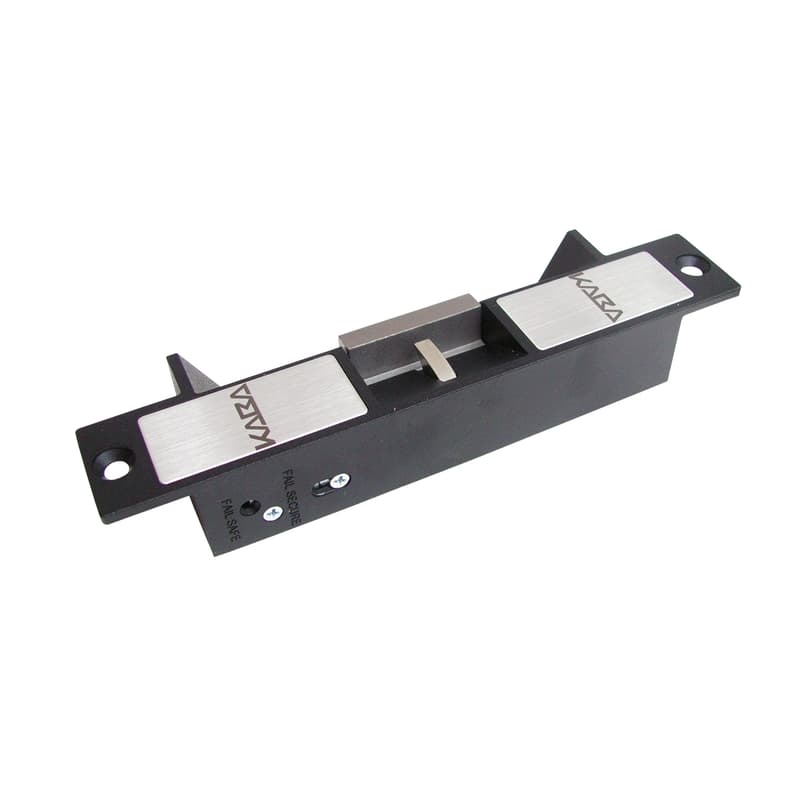

Dormakaba KES2200 Heavy Duty Electric Strike, Monitored, 12-28V DC/AC

The Dormakaba DK-KES2200 is a high security electric strike, offering a single model which includes features such as switch monitoring of latch, keeper and solenoid, variable voltage from 12VDC/ AC to 28VDC/AC and a fast and convenient interchangeable fail safe/fail secure function (changeable on site). The construction of housing and keeper are of stainless steel and include pre-drilled holes for optional extension lips. Also included in package is an installation kit for metal frame installation.

• Fail safe/fail secure configurable
• Suits latch depth up to 15mm
• Monitored latch, keeper, and solenoid
• Pre-drilled for optional extension lips
• Includes mounting tabs for metal frame
• Solid stainless-steel construction

Datasheets

• DK-KES2200 Datasheet.pdf

• Dimensions: 175L x 44W x 27D(mm)
• Holding strength: 920kg
• Operating voltage: 12/24VDC
• Voltage tolerance: +/-15 percent
• Current draw: 230mA/12VDC, 140mA/24VDC
• Operating Temperature: -10 - +45 degrees Celsius
• Humidity: 0 - 95 percent non-condensing
• Cycle tested: to 1 million cycles
• Material: stainless steel housing and keeper
