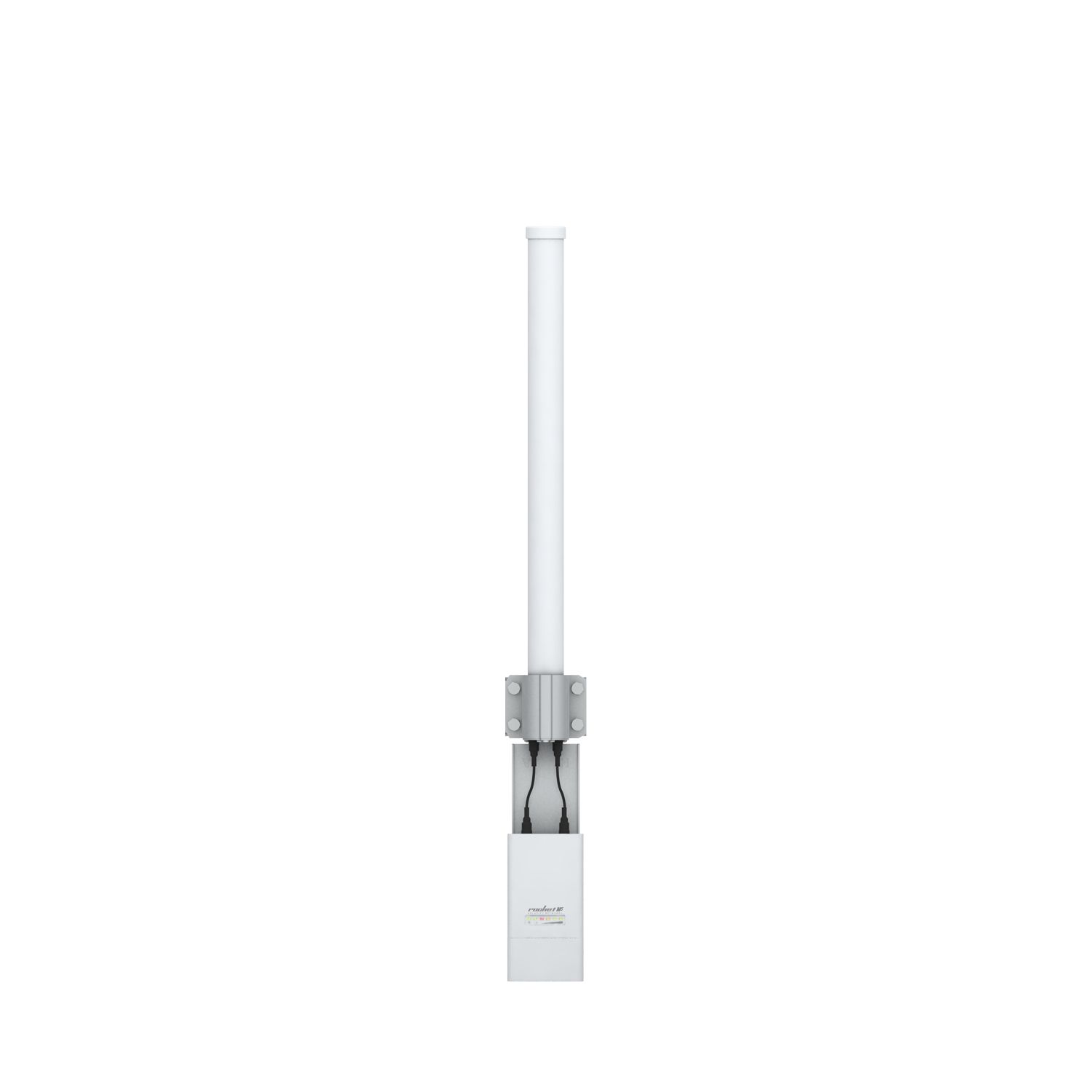

The first of its kind, airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.

Datasheets

• UB-AMO-xG1x Datasheet.pdf

• Dimensions: 799 x 90 x 65 mm
• Weight: 0.82 kg (Mount Included)
• Frequency: 5.45 - 5.85 GHz
• Gain: 13 dBi
• Elevation Beamwidth: 7deg
• Electrical Downtilt: 2deg
• Max. VSWR: 1.5:1
• Wind Survivability: 125 mph
• Wind Loading: 12 lbf @ 100 mph
• Polarization: Dual Linear
• Cross-Pol Isolation: 25 dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
