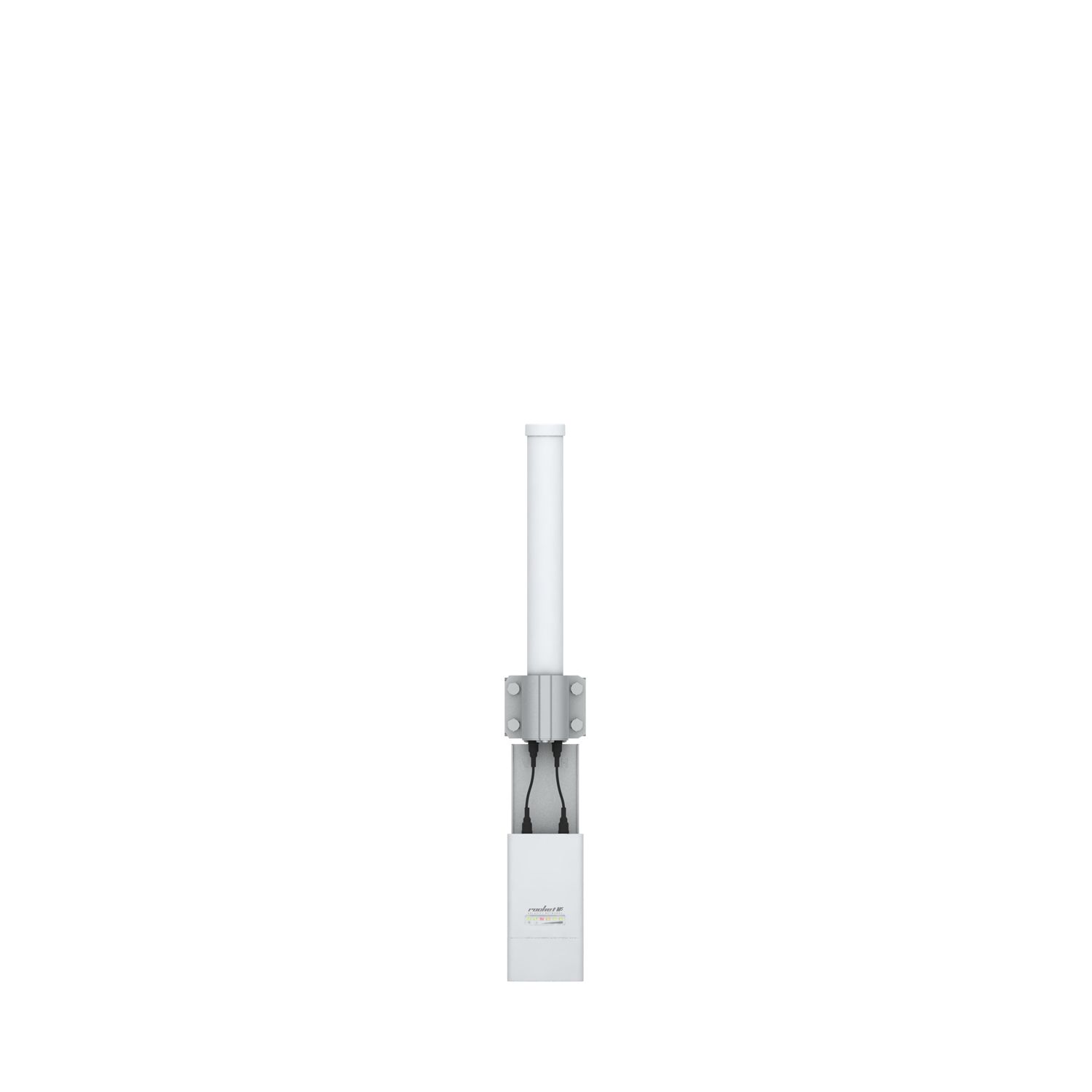

Ubiquiti 5.45 - 5.85 GHz AirMax 10dBi 2x2 MIMO Omni-Directional Antenna

UB-AMO-5G10
AVAILABLE TO ORDER
Ubiquiti 5.45 - 5.85 GHz AirMax 10dBi 2x2 MIMO Omni-Directional Antenna

The first of its kind, airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.

  • Dimensions: 582 x 90 x 65 mm
  • Weight: 0.68 kg (Mount Included)
  • Frequency: 5.45 - 5.85 GHz
  • Gain: 10 dBi
  • Elevation Beamwidth: 12deg
  • Electrical Downtilt: 4deg
  • Max. VSWR: 1.6:1
  • Wind Survivability: 125 mph
  • Wind Loading: 10 lbf @ 100 mph
  • Polarization: Dual Linear
  • Cross-Pol Isolation: 25 dB Min.
  • ETSI Specification: EN 302 326 DN2
  • Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers included

add remove Description

No description available for this product

  • Dimensions: 582 x 90 x 65 mm
  • Weight: 0.68 kg (Mount Included)
  • Frequency: 5.45 - 5.85 GHz
  • Gain: 10 dBi
  • Elevation Beamwidth: 12deg
  • Electrical Downtilt: 4deg
  • Max. VSWR: 1.6:1
  • Wind Survivability: 125 mph
  • Wind Loading: 10 lbf @ 100 mph
  • Polarization: Dual Linear
  • Cross-Pol Isolation: 25 dB Min.
  • ETSI Specification: EN 302 326 DN2
  • Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers included
