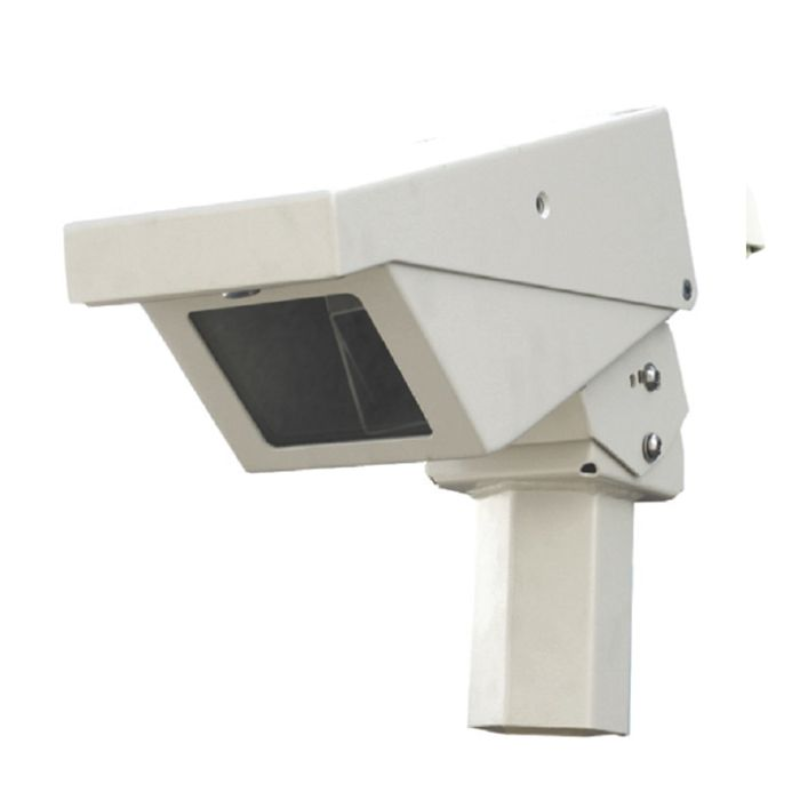

SEE Pole Top Mount Wedge Housing, IP66, Vandal

The SMW5PMPT is an attractive, weatherproof enclosure that has been designed for high security applications where high vandal, corrosive and tamper resistance is required.

Manufactured from powder coated zinc plated steel, this enclosure includes a pan/tilt feature allowing for a wide range of camera adjustments for different angles of view. This makes it an ideal choice for car parks, under eaves, railway platforms, tunnels, and walkways.

Datasheets

• SEE-SMW5PMPT Datasheet.pdf

• Construction: 2.5mm zinc plated steel
• Finish: SMW5PMPT- Mossvale sands (light beige) polyester powder coat.
• Lens: 6.0mm polycarbonate.
• Access: 4 x 6.0mm stainless steel security screws plus one Selectrix coin keylock as standard. Optional bi-lock high security key lock.
• Cable Entry: 2 x 20mm entries.
• Max. Camera Size: 265mm.
• Weight: 8.44kg.
