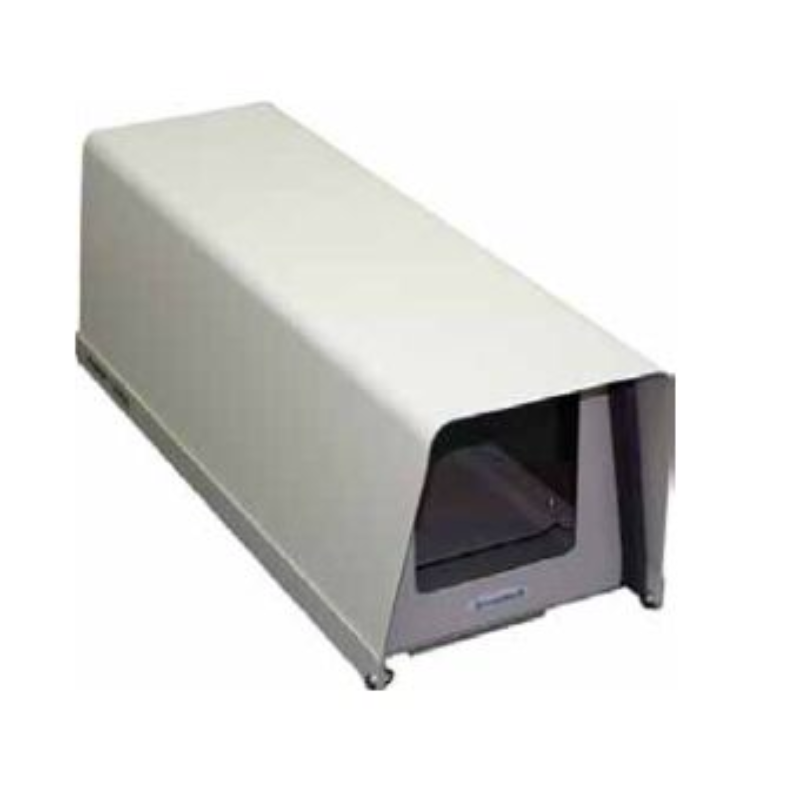

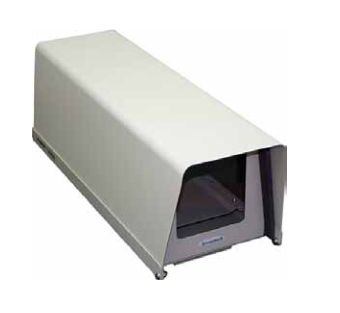

SEE IP66 Indoor/Outdoor Environmental Housing, Zincanneal Steel, Beige

IP66 Outdoor camera housing for general purpose applications.

Available in a powder coated zincanneal for general purpose use. The LPAR480 housing is designed to accommodate 1/4" to 1/3" CCD camera fitted with fixed and zoom lenses. Including a 100mm clear space behind the camera for connections when the maximum camera lens combination is used, this housing can be mounted off poles, building walls or in factories. It is also suitable fo use in mines.

Datasheets

• SEE Environmental Housing Datasheet.pdf

• Construction: 1.6mm zincanneal body and sun shield.
• Finish: Mossvale sands (light beige) polyester powder coat.
• Lens: 4.8mm arris edged safety glass.
• Cable Entry: 2 x 20mm PVC cable compression glands and 2 blanking grommets.
• Access: 2 x Southco stainless steel rotary clasps at the rear of the lid.
• Max. Camera Size: 371 mm (L) x 178mm (W) at the camera platform reducing to 151mm at the inside top of the lid x 140 mm (H). 170 mm height available without the camera sled.
• Weight: 8.9kg.
