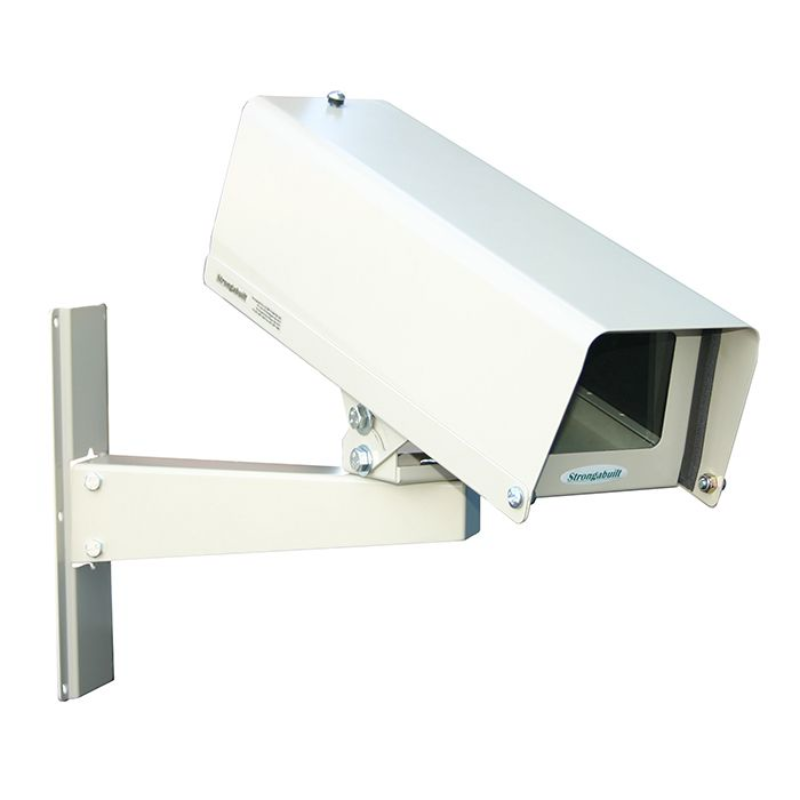

SEE IP66 Indoor/Outdoor Environmental Housing, Wall Bracket, Manual Pan Tilt White

IP66 outdoor camera housing for general purpose applications.

The ECO housing is designed to accommodate 1/4" to 1/3" CCD cameras fitted with fixed and zoom lenses. The camera lens combination, up to the recommended maximum length, allows at least 100mm clear space behind the camera for connections.

The pivoting lid swings clear of the lens to allow camera access and set up with the cover open. In this design the installer has full access to the sides, top and rear of the camera and lens. The camera is mounted on a clamped plate for fast install and removal.

Datasheets

• SEE-ECOSS Datasheet.pdf

• Construction: ECOSS- 1.2mm & 1.6mm stainless steel.
• Finish: ECOSS- White polyester powder coat.
• Lens: 4.8mm arris edged glass.
• Cable Entry: 3 x 20mm entries, two in the base and one positioned at the rear of the housing.
• Access: 3 x 6mm pan head screws.
• Max. Camera Size: 220mm (L) x 115mm (W) x 86mm (H).
• Weight: 4.7kg
