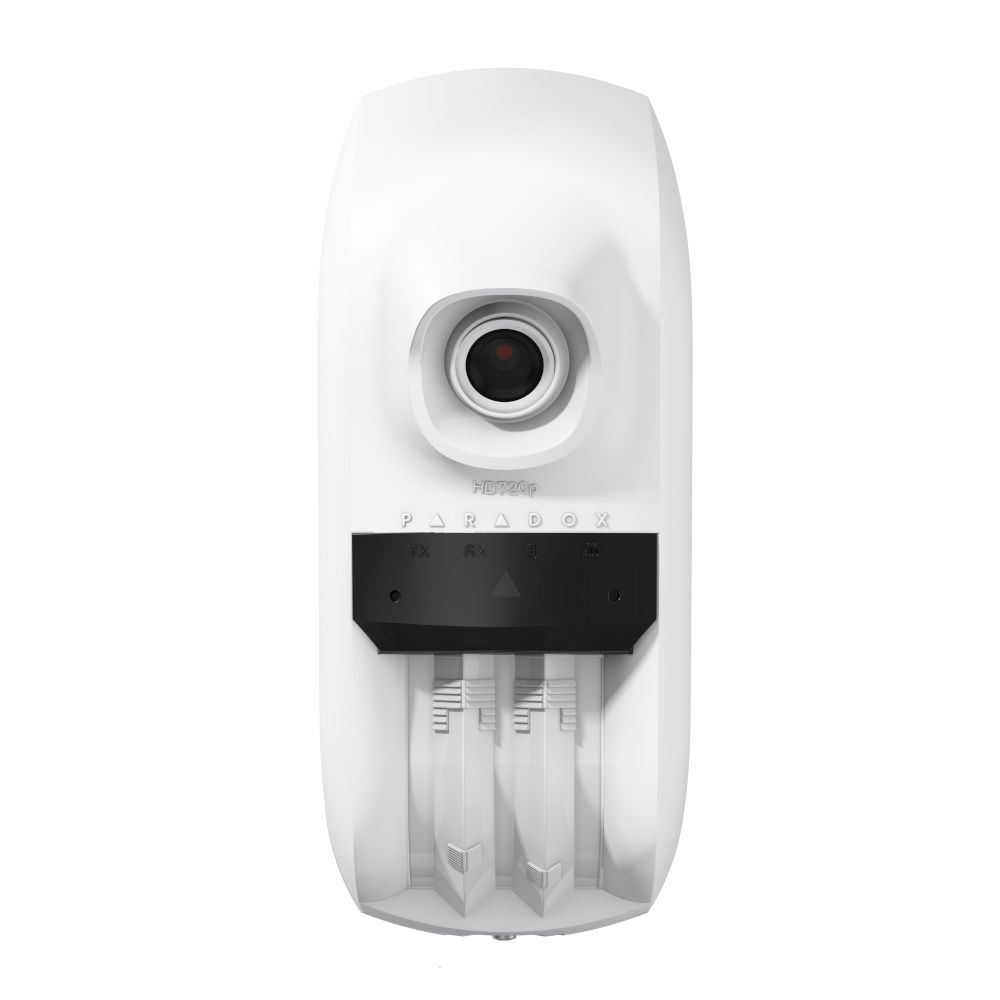

*CLR* Paradox Outdoor IPX4 Quad PIR with Inbuilt HD WiFi / Ethernet Camera, Pet Immune
The Paradox PDX-HD88 is an all-in-one pet immune motion detector and outdoor ethernet/Wi-Fi camera. It integrates seamlessly with existing and new Paradox systems by eliminating the need for separate CCTV, access or automation installations and services.
Connectivity is enabled through the Paradox Swan Servers and monitoring is made easy through the Insite GOLD Android/iOS application. Through its simplicity of one installation and one user-friendly application, the PDX-HD88 is suitable for a variety of residential or business environments where all-round surveillance is a must.
This innovative product is also jam-packed with features such as: HD 720p and HD audio streaming, H.264 compression, record on trigger (ROT) activation, pre-alarm recording and day/night modes.
- Fully integrated solution for Paradox systems
- Security event-driven files linked to events
- IPX4 rating suitable for outdoors under cover
- Remote access through Insite GOLD Android/iOS application from Swan service
- 720p colour streaming (H.264), HD audio
- Google Drive cloud storage
- Internal storage: 15 minutes alarm and 15 minutes video on demand (VOD) or record on trigger (ROT)
- Auto storage on phone when playing video files
- 3 seconds pre-alarm recording
- Push notifications for easy monitoring
- True Paradox pet immunity. Pets up to 50cm will not be detected
- Removable rain cover included
- Compatible with Spectra SP5500, SP6000, SP7000, EVO192 and EVOHD
- NOTE: Not compatible with MG5050
- Image Resolution: 1280 x 720p
- Image Sensor Type: 1.4 megapixels, CMOS sensor, 7V / LUX.Sec
- Streaming Video: 720p H.264 @ 10 FPS
- PIR Sensor: 2 x dual elements
- PIR Lens: Mironel lens
- True Paradox Pet Immunity. Pets up to 50cm will not be detected
- Camera Angle of View: 91 degrees (V) x 110 degrees (H)
- PIR Coverage: 16m x 16m
- Input Voltage: 12 to 16VDC
- Current Consumption: 350mA max @ 13.8VDC
- Operating Temperature: -40 to 60 degrees celsius
- Dimensions: (H x W x D), 16.8cm x 6.8cm x 7.4cm
Datasheets
- Image Resolution: 1280 x 720p
- Image Sensor Type: 1.4 megapixels, CMOS sensor, 7V / LUX.Sec
- Streaming Video: 720p H.264 @ 10 FPS
- PIR Sensor: 2 x dual elements
- PIR Lens: Mironel lens
- True Paradox Pet Immunity. Pets up to 50cm will not be detected
- Camera Angle of View: 91 degrees (V) x 110 degrees (H)
- PIR Coverage: 16m x 16m
- Input Voltage: 12 to 16VDC
- Current Consumption: 350mA max @ 13.8VDC
- Operating Temperature: -40 to 60 degrees celsius
- Dimensions: (H x W x D), 16.8cm x 6.8cm x 7.4cm
