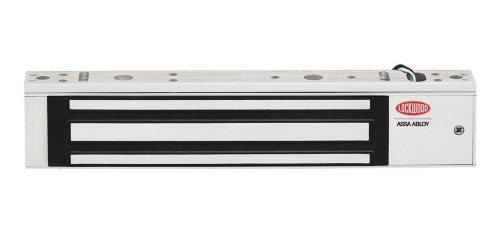

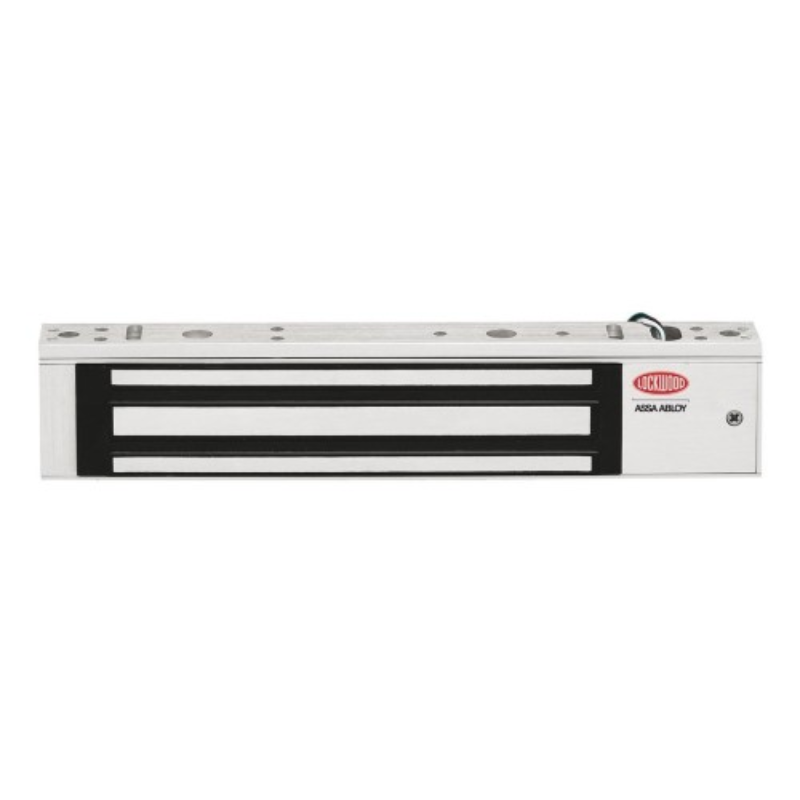

The Single Series Electromagnetic Locks operate with holding forces from 140Kg up to 580Kg. Covering a range of applications, the Z2, Z4 and Z8 electromagnets are ideal for applications from cupboard doors through to high-use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

• 250 - 280Kg Holding Force
• Self alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Monitoring: Reed switch monitoring on all models.

Datasheets

• PD-770x00-012 Datasheet.pdf

• 238 x 48 x 27mm
• 12V / 24V DC
• 450mA @12V DC, 225mA @ 24V DC
