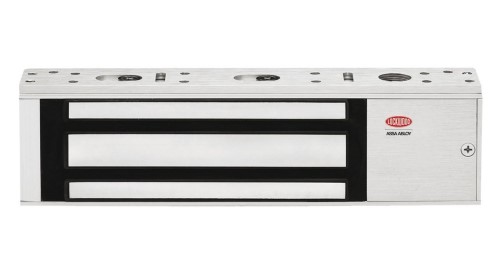

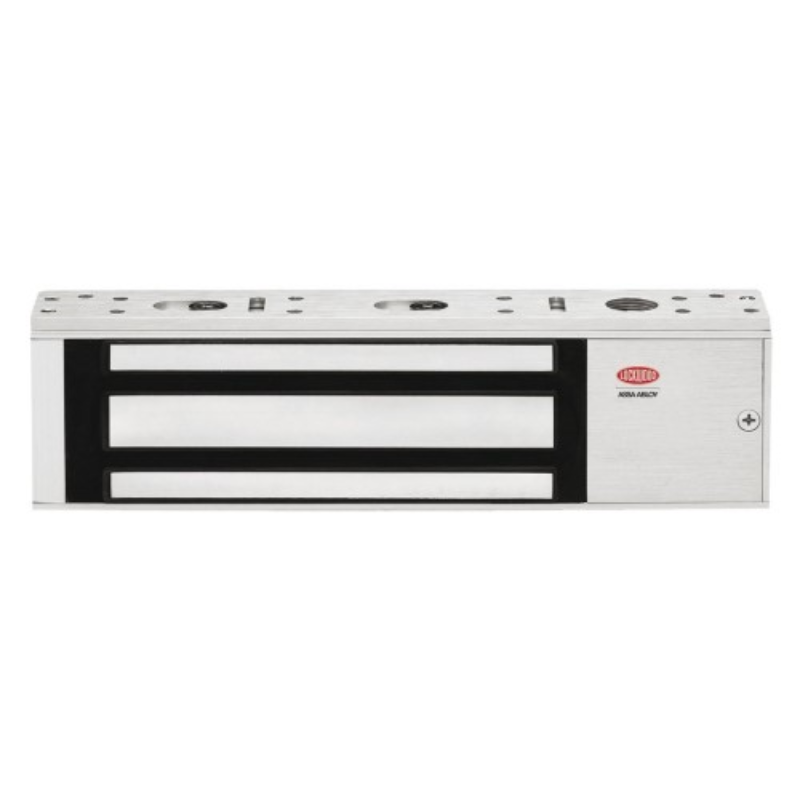

Lockwood EMZ8-SM Standard Mag, 580kg, Single, Monitored, PTL, Surface Mount, 12/24V DC

Home // Access Control // Locks // Assa Abloy // Lockwood Magnetic Locks // Z8 Single Series Locks // Lockwood EMZ8-SM Standard Mag, 580kg, Single, Monitored, PTL, Surface Mount, 12/24V DC

Code: PD-770600-012
Brand: Lockwood
Product Details
Lockwood EMZ8-SM Standard Mag, 580kg, Single, Monitored, PTL, Surface Mount, 12/24V DC

Overview
Features
Specifications
Downloads

The Single Series Electromagnetic Locks operate with holding forces from 140Kg up to 580Kg. Covering a range of applications, the Z2, Z4 and Z8 electromagnets are ideal for applications from cupboard doors through to high-use commercial swing doors. With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

550 - 580Kg Holding Force
Self alignment: armature plate pivots to accommodate door drop
Silent operation: no humming or buzzing
Monitoring: Reed switch monitoring on all models.

Datasheets

PD-770x00-012 Datasheet.pdf

266 x 72 x 40mm
12V / 24V DC
512mA @ 12V DC, 250mA @24V DC
