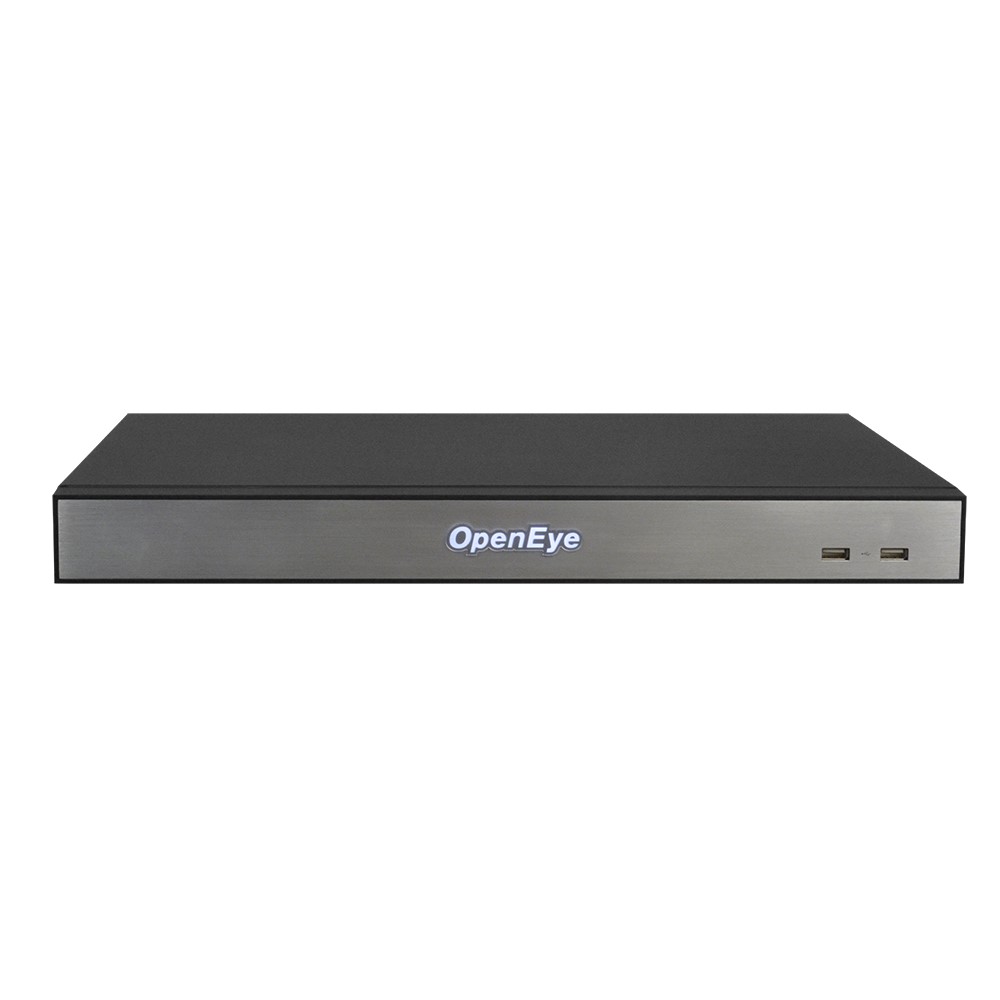

OpenEye 16ch HD Analogue Appliance, Linux OS, 4TB, No Licence
Brand: OpenEye
Product Details
OpenEye 16ch HD Analogue Appliance, Linux OS, 4TB, No Licence
The OpenEye OE-MAX1604 recording appliance offers powerful IP or analogue recording in an affordable, compact chassis. It is equipped with an on-board hybrid chipset supporting up to 16 channels of HD analogue and IP video.
The OE-MAX1604 supports standard analogue cameras, HD-TVI (up to 4K/8MP), AHD (up to 5MP), HD-CVI (up to 4MP) and IP cameras.
With full integration to OpenEye Web Services (OWS), the OE-MAX1604 offers centralised user management, single sign-on convenience, mobile apps, and a web client that allows for easy remote connection to your recorders. Network setup is fast and easy using Web Connect and eliminates the need for port forwarding or DDNS. The OE-MAX1604 appliance runs on a secure Linux OS and comes preloaded with Apex Server software as a turnkey solution.
- Max channels 16
- 2 drive capacity
- Dual GB NICs
- HD analogue
- Rack mountable
- Sensor I/O
- SSD OS drive
- Supported video input: AHD, 5MP, 4MP, 2MP, 1MP
- HD-CVI: 4MP, 2MP, 1MP
- HD-TVI: 8MP, 5MP, 4MP, 3MP, 2MP, 1MP
- Max recording rate: 100Mbps
- Storage capacity: 4TB
- Operating system: Linux
- Network ports: dual GbE for dedicated client and camera networks
- OS drive: standard
- Power consumption: 292W
- Dimensions: 438mm x 343mm x 45mm
- Weight: 9.07kg
