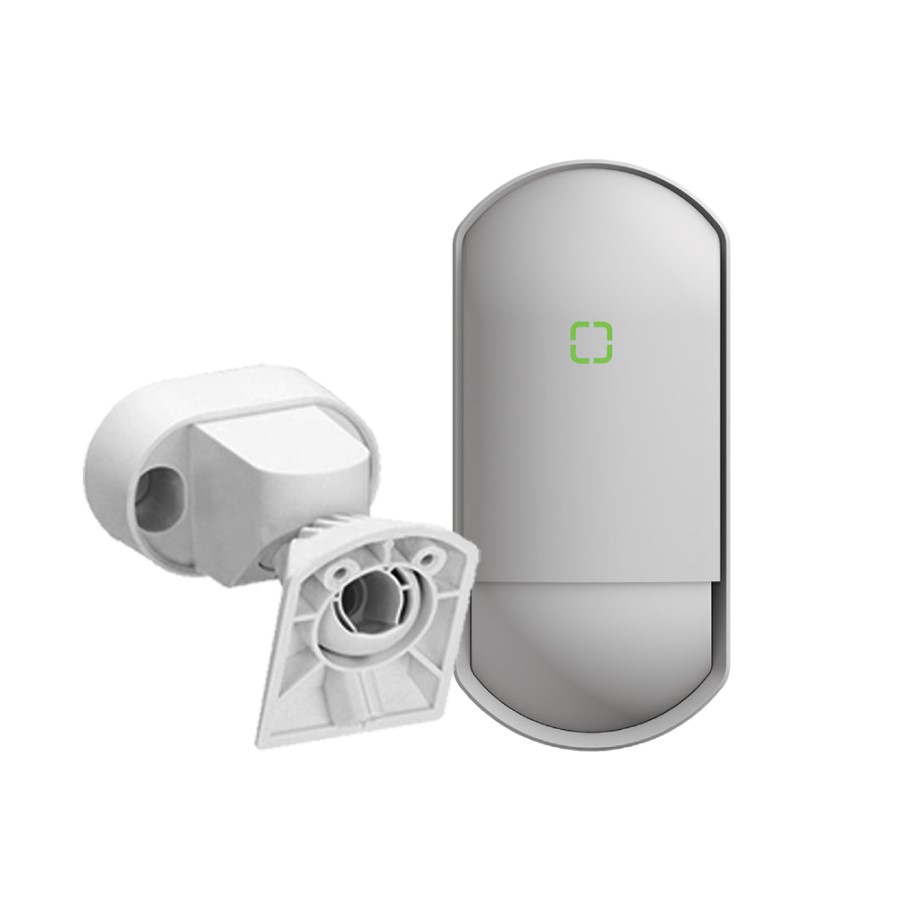

The IR-D-P2E-BRK kit comes with the Inner Range IR-D-P2E and IR-D-BRK-CW-G2 bracket. The IR-D-P2E is a commercial grade dual technology, microwave & PIR movement detector with 15m detection range. The perfect choice for residential to commercial applications for harsher environments.

IR Ready, the IR-D-P2E detector is factory fitted with an End-of-line (EOL) resistor module that is specific to Inner Range security controllers which dramatically speeds up installation time by reducing the complexity of the installation. This module is easily removed so these high-quality detectors are compatible with any brand of security alarm system. High quality, highly reliable, IR Ready and easy to install, these commercial grade intrusion detectors will suit any indoor application from residential to highly sensitive commercial applications.

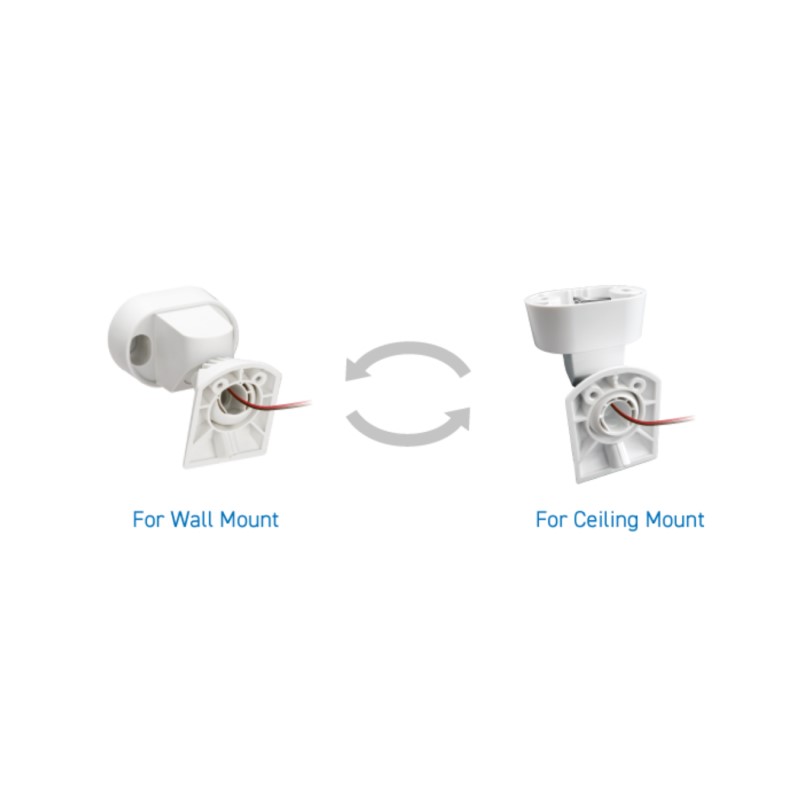

• Wall or ceiling mount
• Customisable Field Of View - select a wide or narrow detection area by rotating the lens within the case
• Easily viewable LED colour - LED colour is green and viewable from distance
• Human-catch element - designed to create proper detection areas and optimise detection sensitivity
• Refined spherical lens - provides a precise focal length to each of the multiple lens segments which enables precise detection without distortion
• SMDA - by analysing detection patterns and environmental information, SMDA improves immunity against various noise factors such as climate changes
• 180-degree cover lock - the front cover can be opened and closed by turning the captive screw lock 180 degrees with a flat head screwdriver

• Wide coverage: 15m and 85 degrees
• Narrow coverage: 24m and 5 degrees
• Power input: 9.5V to 16V DC
• Current draw: 8mA (idle), 14mA (max) at 12V DC
• Operating temperature: -20 to +45 degrees Celsius
• Dimensions: 129.2 (H) x 61.5 (W) x 50.9 (D)
• Weight: 110g
