Inner Range Joiner Cable for 18Ah Battery to suit 6mm Studs, Eyelet to Eyelet

Home // Alarm Equipment // Alarm Peripherals // Backup Batteries // Power & Cabling // UPS & Batteries // Backup Batteries // Access Control // Integriti // Cables // Inner Range Joiner Cable for 18Ah Battery to suit 6mm Studs, Eyelet to Eyelet

Code: IR-999067
Brand: Inner Range
Product Details

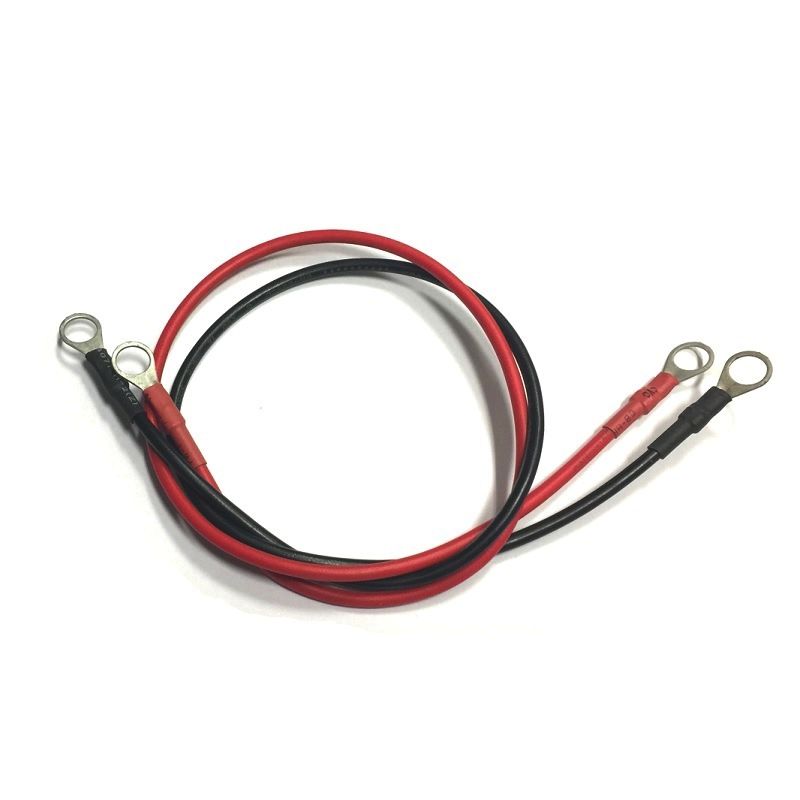

Inner Range Joiner Cable for 18Ah Battery to suit 6mm Studs, Eyelet to Eyelet

Overview
Specifications

The Inner Range IR-999067 18Ah battery joiner cable is typically used in high security applications where an extended operating time for a security system is required. The extended operating time is achieved by using the joiner cable to parallel connect several high capacity batteries to the system.

Cable Length: 370mm
Wire Gauge: 14 AWG
Wire Type: Flexible multi-stranded tinned wire
Wire Insulation: PVC
Conductor Insulation Voltage Rating: 300V RMS
Cable Colours: one red, one black
Cable Lugs: 6mm eyelet terminal connector to suit 6mm studs on 18Ah battery (CSD-1218)
