Integriti PrismaX Colour LCD Keypad

IR-996400
AVAILABLE TO ORDER

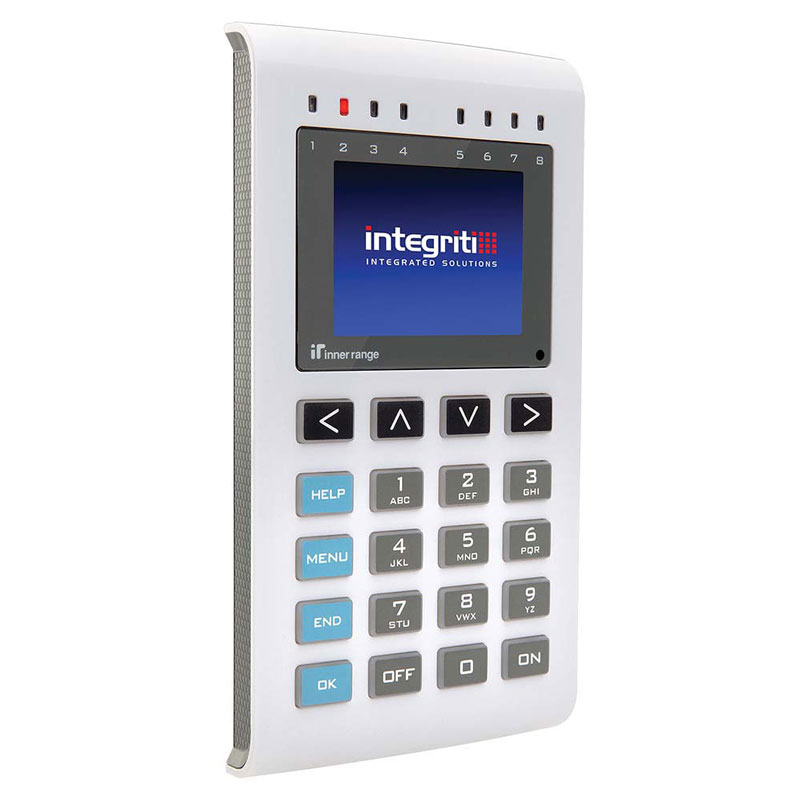

Integriti PrismaX Colour LCD Keypad

Sharing the same attractive design style as the EliteX, the PrismaX Keypad boasts a full-colour LCD display. End-users will delight in using the PrismaX keypad, with large clear text and icon-driven menus control of the Integriti system is made simple.

Just some of the functions supported include monitoring and acknowledging alarms and events, arming/disarming, unlocking/locking doors, controlling automation functions and isolating zones. Eight dual colour status LEDs can be used to display the armed/disarmed state of areas or for other intruder, access control or automation purposes. An in-built temperature sensor displays the room temperature and can also be integrated into the system for building automation control.

  • Elegant slimline surface mount design
  • Full colour LCD backlit screen
  • Large - easy to read text
  • Four arrow keys provide quick and convenient access to options in the graphic interface menu
  • Tamper monitored housing
  • Light sensitive auto-dimming brightness for LCD, Keypad and LEDs
  • Backlit rubberised keypad provides a user-friendly tactile feel
  • Local temperature display
  • 8 LED indicators for Area status display
  • Instant help text available anytime, at the press of a key
  • Programmable panic key and duress option
  • Compatible with Integriti Systems only

Physical

  • Housing Dimensions: 152h x 90w x 18d mm
  • Installation Environment: 0 Degrees - 50Degrees C @ 15% to 85% relative humidity (non-condensing)

Electrical

  • Input Voltage: 11V – 14V DC
  • Operational Current: Auto current limiting typically less than 100mA @12V (270mA Peak)

Indicators

  • Speaker: 8-bit digital sound
  • LED Indicators: Array of 8, auto-dimming bi-colour LEDs

User Interface

  • LCD Screen: 320 x 240 (QVGA) colour LCD
  • LCD Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
  • Keypad Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)

add remove Overview

Sharing the same attractive design style as the EliteX, the PrismaX Keypad boasts a full-colour LCD display. End-users will delight in using the PrismaX keypad, with large clear text and icon-driven menus control of the Integriti system is made simple.

Just some of the functions supported include monitoring and acknowledging alarms and events, arming/disarming, unlocking/locking doors, controlling automation functions and isolating zones. Eight dual colour status LEDs can be used to display the armed/disarmed state of areas or for other intruder, access control or automation purposes. An in-built temperature sensor displays the room temperature and can also be integrated into the system for building automation control.

Physical

  • Housing Dimensions: 152h x 90w x 18d mm
  • Installation Environment: 0 Degrees - 50Degrees C @ 15% to 85% relative humidity (non-condensing)

Electrical

  • Input Voltage: 11V – 14V DC
  • Operational Current: Auto current limiting typically less than 100mA @12V (270mA Peak)

Indicators

  • Speaker: 8-bit digital sound
  • LED Indicators: Array of 8, auto-dimming bi-colour LEDs

User Interface

  • LCD Screen: 320 x 240 (QVGA) colour LCD
  • LCD Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
  • Keypad Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
