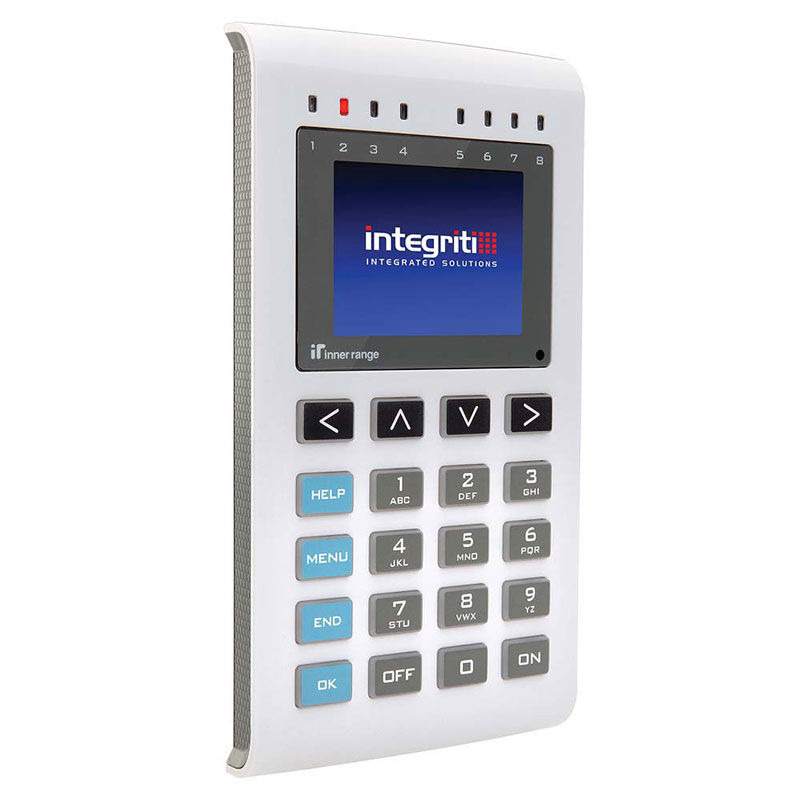

Integriti PrismaX Colour LCD Keypad
Sharing the same attractive design style as the EliteX, the PrismaX Keypad boasts a full-colour LCD display. End-users will delight in using the PrismaX keypad, with large clear text and icon-driven menus control of the Integriti system is made simple.
Just some of the functions supported include monitoring and acknowledging alarms and events, arming/disarming, unlocking/locking doors, controlling automation functions and isolating zones. Eight dual colour status LEDs can be used to display the armed/disarmed state of areas or for other intruder, access control or automation purposes. An in-built temperature sensor displays the room temperature and can also be integrated into the system for building automation control.
- Elegant slimline surface mount design
- Full colour LCD backlit screen
- Large - easy to read text
- Four arrow keys provide quick and convenient access to options in the graphic interface menu
- Tamper monitored housing
- Light sensitive auto-dimming brightness for LCD, Keypad and LEDs
- Backlit rubberised keypad provides a user-friendly tactile feel
- Local temperature display
- 8 LED indicators for Area status display
- Instant help text available anytime, at the press of a key
- Programmable panic key and duress option
- Compatible with Integriti Systems only
Physical
- Housing Dimensions: 152h x 90w x 18d mm
- Installation Environment: 0 Degrees - 50Degrees C @ 15% to 85% relative humidity (non-condensing)
Electrical
- Input Voltage: 11V – 14V DC
- Operational Current: Auto current limiting typically less than 100mA @12V (270mA Peak)
Indicators
- Speaker: 8-bit digital sound
- LED Indicators: Array of 8, auto-dimming bi-colour LEDs
User Interface
- LCD Screen: 320 x 240 (QVGA) colour LCD
- LCD Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
- Keypad Backlight: Variable brightness via programming, Auto-dimming (Can be turned off)
