Integriti 10 Amp (8A + 2A) SMART Power Supply, 13.75V DC

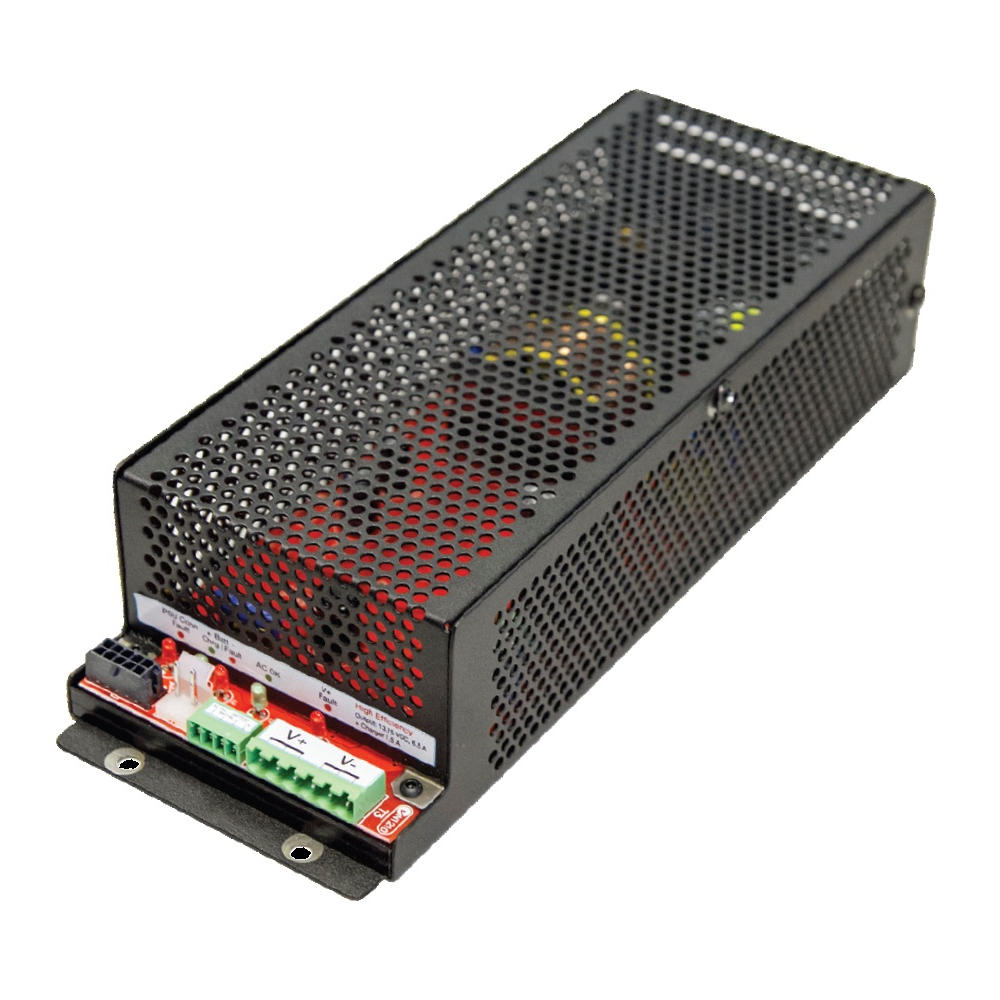

The Inner Range IR-996095 10 Amp 13.75VDC Power Factor Corrected (PFC) Smart Power Supply Unit (PSU) is a highly efficient power supply solution designed to meet the modern high spec requirements unique to access control and intruder systems. Monitoring of the power supply status is pivotal to the operation and performance of any security system, and the Inner Range 10 Amp smart PSU delivers this very effectively.
It contains connect status monitoring of critical power-related aspects such as Battery Fault, Low Battery, Battery Not Present, Battery Failed Test, AC Supply Failure, Supply Low Volts, Power Supply Failure, and status monitoring of all Smart Fuses. It also features general purpose AC Fail & Battery Fail alarm outputs and a separate Battery Charger output with Deep Discharge Protection.
- High-level monitoring of PSU status
- Dynamic battery testing
- Deep Discharge Battery protection
- Battery reverse polarity protection
- Quick-Connect PSU interface for Inner Range modules
- Fully overload protected
- Smart Fuse protection
- Intelligent load sharing
- LED status indicators
- Universal low-level status outputs - AC Fail & Battery Fail
- Separate battery charger output
- Constant current limiting on battery charger output
- 3 x heavy duty DC output connections
- Input Voltage: 110 to 240V AC
- Output Voltage: 13.75V DC up to 10A (2A for battery charging)
- Dimensions: L: 274mm, W: 100mm, H: 64mm.
- Weight: 1.1 kg
- Operating Environment: 0 to 49 Celsius (Ambient)
Datasheets
- Input Voltage: 110 to 240V AC
- Output Voltage: 13.75V DC up to 10A (2A for battery charging)
- Dimensions: L: 274mm, W: 100mm, H: 64mm.
- Weight: 1.1 kg
- Operating Environment: 0 to 49 Celsius (Ambient)
