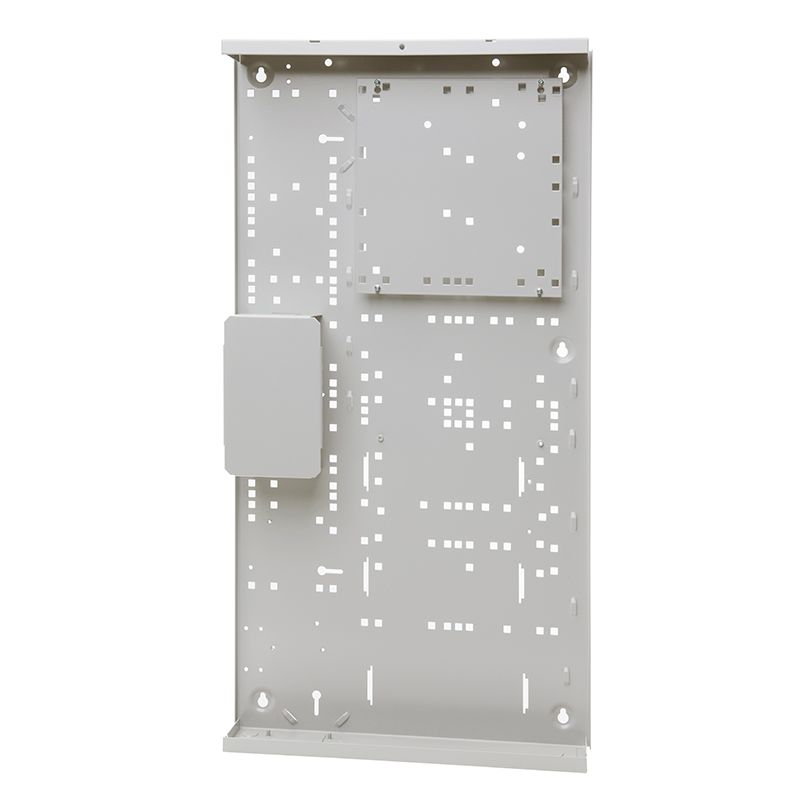

Low Profile Enclosure with Mounting Plate - Extra Large
Designed for our Concept 4000 Module PCBs, the Low Profile Metal Enclosures present a modular, application oriented solution to suit a variety of installation requirements. The three sizes of Low Profile Enclosures are designed to minimise necessary wall space and simplify the practice of selecting and installing enclosures. Powered and non-powered versions of each kind of enclosure are available. Four sizes of mounting plates enable many combinations of associated module PCB types to be installed within the same enclosure.
- Enclosures are constructed of medium duty, grey powder coated metal with a hinged removable lid
- A tamper switch and bracket are supplied with each enclosure
- Conduit access is provided by "punch out" holes in the top and bottom of the enclosure, while a DB9 mounting hole is also provided for the IR-995009 cable or similar
- Low Profile Enclosures (with the exception of Extra Small) are designed to house the transformer, 2A Power Supply PCB, Battery and one or more Concept Module PCBs, depending on their size type
- Cabinet Dimensions: 702(L) x 358(W) x 85(D) (mm)
