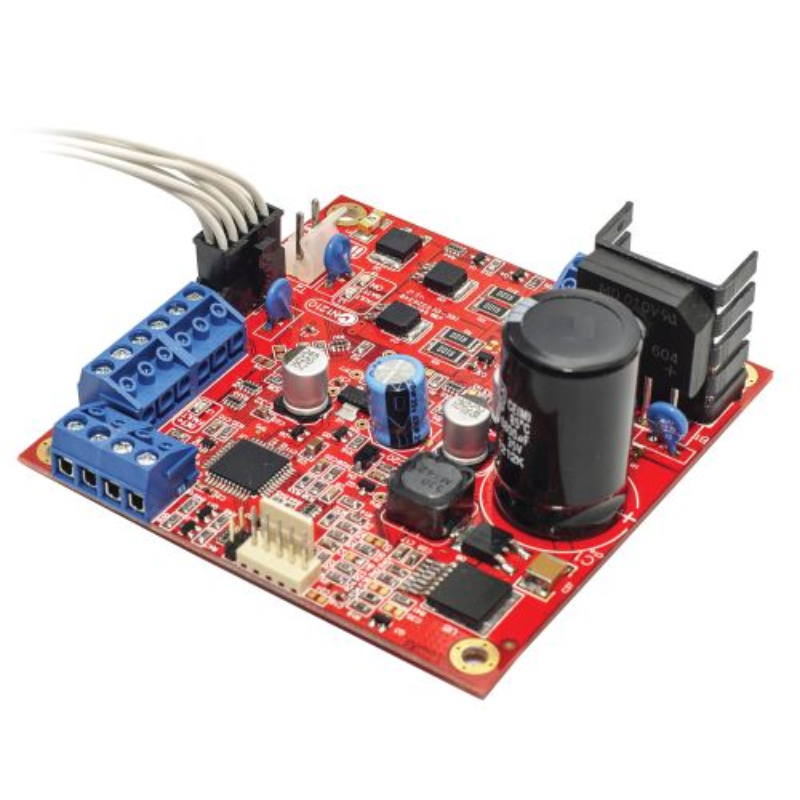

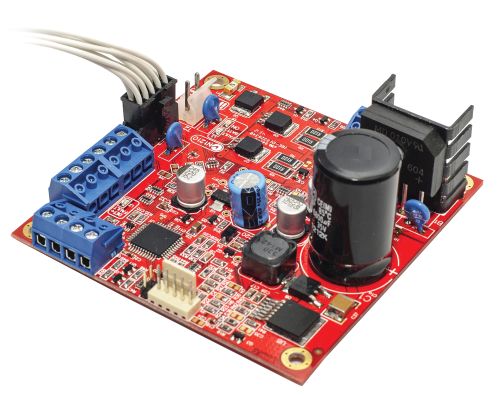

The 3 Amp 13.75VDC SMART power supply is a universal power supply which can be used wherever battery backed 12V supplies are required.

When used with the Inner Range Integriti system, the 3 Amp SMART power supply offers Quick-Connect status monitoring of critical power-related events such as Battery Fault, Low Battery, Battery Not Present, Battery Failed Test, AC Supply Failure, Supply Low Volts, Power Supply Failure and status monitoring of self-resetting, processor controlled Smart Fuses.

It also features general purpose AC Fail & Battery Fail alarm outputs and a separate Battery Charger output with Deep Discharge Protection.

The 3 Amp power supply boasts a highly reliable design that delivers exceptional stability when used with the recommended battery type and is also suitable for providing power to card readers including Proximity type reader heads.

• High Level monitoring of PSU Status (With Integriti Modules)
• Quick-Connect PSU interface (For Integriti modules)
• Separate battery charger output
• Deep Discharge battery protection
• Battery reverse polarity protection
• Smart Fuse protection
• Universal low level status outputs - AC Fail & Batt Fail
• Seperate DC output connection
• 16VAC Input (A 4Amp transformer is required)

Datasheets

• IR-996091PCB&K Datasheet.pdf
