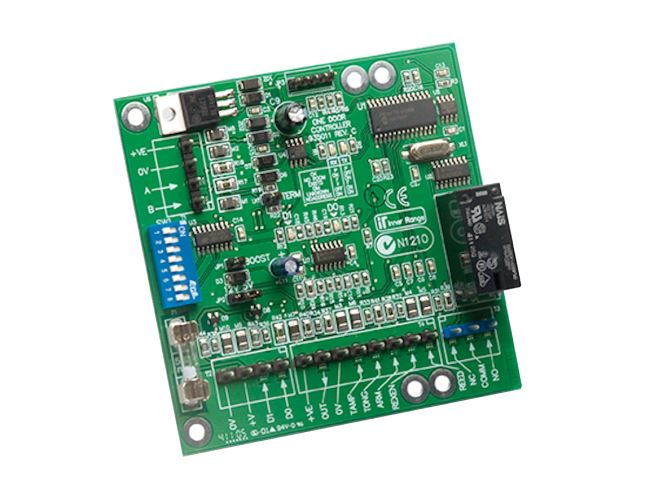

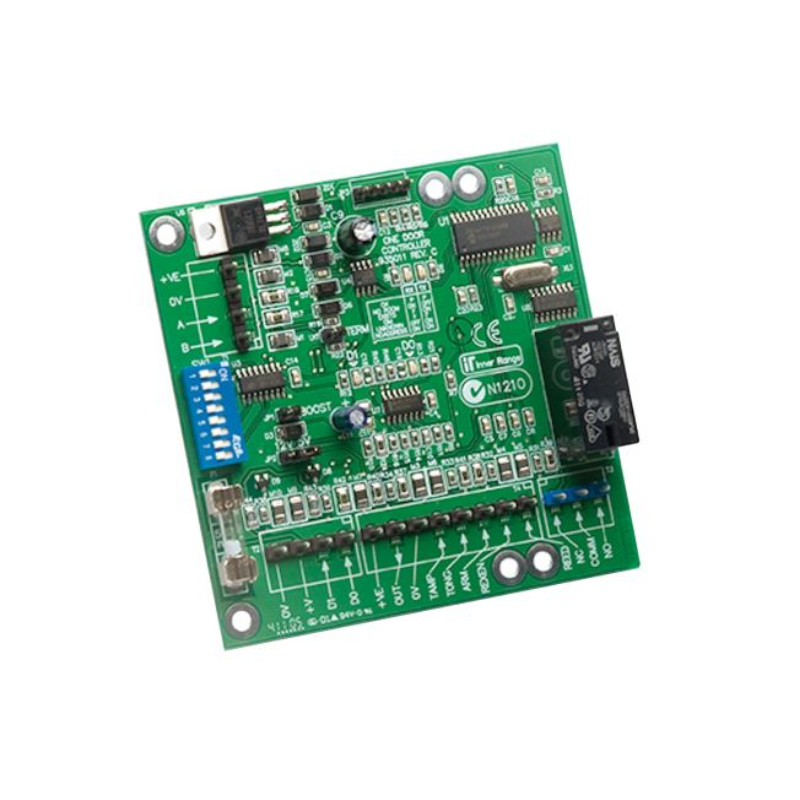

The 1-Door LAN Access Module is an economical one door, one card reader access module. Configuration options allow for a broad range of card reader technologies. The 1-Door LAN Access Module fully supports the advanced Concept access control features, i.e. soft/hard/timed anti-passback, dual user, card and PIN, free access via time-zones and so on.

• Supports magnetic swipe or Wiegand card readers
• Standard version supports offline database of up to 31 backup cards
• Can be utilised in Door or Lift access control operations
• Provides reed and tongue sense monitoring
• Request to Enter (REN), Request to Exit (REX) and Arm inputs provided
• Door Open Too Long (DOTL), valid and invalid output
• On-board lock relay
• 95mm(L) x 95mm(W)
• 11-14V DC (Typically from a separate power supply) with 15mA operational current (max 25mA)
