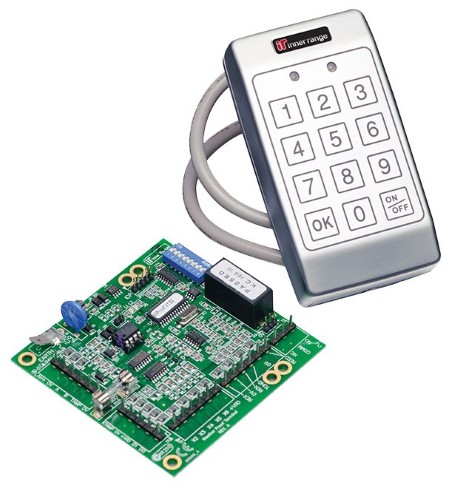

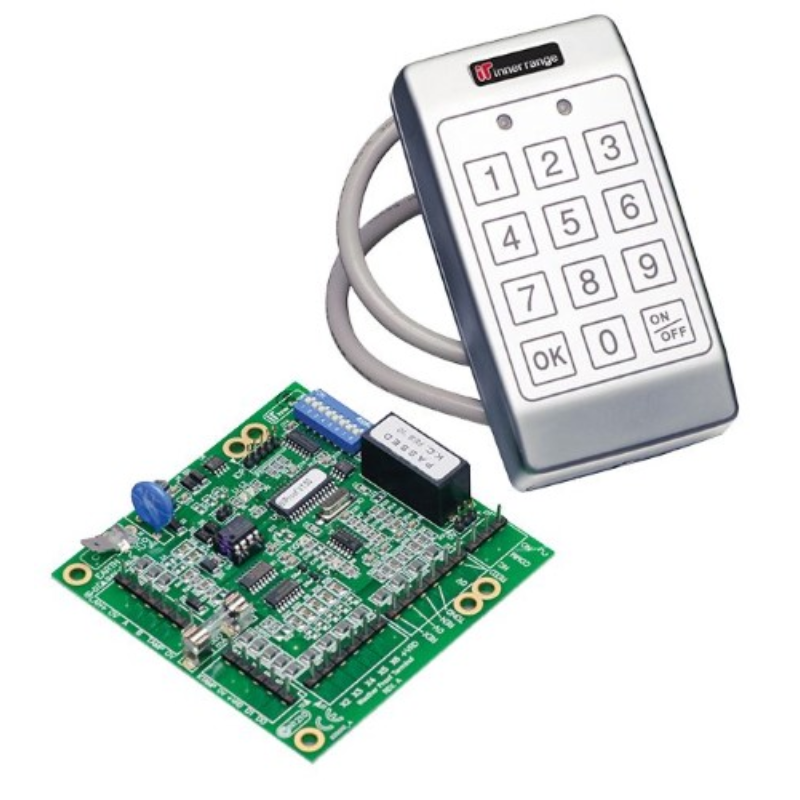

Weatherproof Terminal (Includes Keypad and Reader module PCB)

IR-995010
AVAILABLE TO ORDER
Weatherproof Terminal (Includes Keypad and Reader module PCB)

This device is perfect for gate or door access control in exposed environments. In addition to 1 door access control, users can separately arm and disarm their alarm system or a portion thereof using the Weatherproof Terminal. Along with the area control, there is a visible feedback of "valid / invalid PIN" entry as well as "area armed / disarmed" status. With this terminal, all programmed system users have access to PIN code functionality similar to that of a normal Elite Terminal, but restricted to the associated door and the area associated with the keypad or the user. The Weatherproof Terminal offers more features and tighter integration than third party weatherproof terminal solutions for Concept 4000 systems.

  • Attractive, rugged case is highly vandal resistant
  • Completely dust proof and highly water resistant IP65 rated case with no moving parts
  • Control one door per terminal
  • Control a security area associated with the door or users special area
  • 120mm(L) x 65mm(W) x 27mm(D)
  • 11-14V DC input to PCB (From external power supply) @ 40mA minimum operational current (max 180mA)
