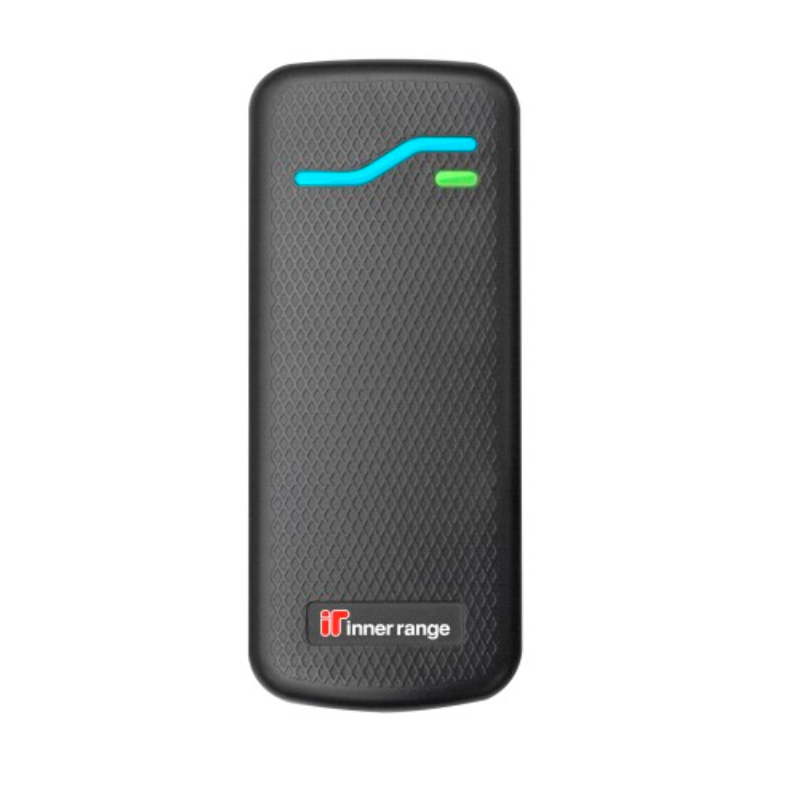

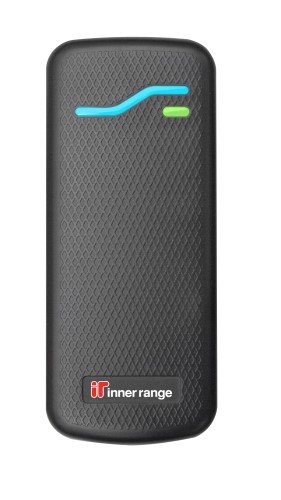

The SIFER card reader is a Smart Card reader designed and manufactured by Inner Range. It is a multi-drop RS-485 based reader that employs 128 bit AES encryption from the card through to the door module, providing a far superior level of security than that of traditional Wiegand based card readers. SIFER readers utilise the Mifare DESfire EV1 card format.
As SIFER readers utilise a superset of the OSDP protocol, the readers may also be deployed on any system capable of using OSDP. Up to 16 SIFER readers may be connected in series to the dedicated RS-485 reader port on the Integriti Intelligent LAN Access Module (ILAM) or the new Integriti Access Controller (IAC) for full Reader-In and Reader-Out operation. Up to 4 SIFER readers may be connected to the Integriti Standard LAN Access Module (SLAM). SIFER readers are IP 67 rated and available with site specific encryption keys.
Secure 128bit AES Encryption
Encrypted from Card to Access Module
Mifare DESfire EV1 Card Format
Water & Dust Resistant to IP67
Vandal Resistant (fully potted)
Flexible LED Assignment
Audible Buzzer (can use as DOTL)
Multi-drop RS-485 Reader LAN
Individual Reader Heartbeat Monitoring
Integriti Auto Reader Discovery
Compatible With Inner Range Encrypted SIFER Cards
Support For Custom Site Codes and Site Specific Encryption
Global Configuration from Integriti Software (including firmware updates)
Small Footprint (dimensions: 39 (W) x 93 (H) x 15 (D) mm)
