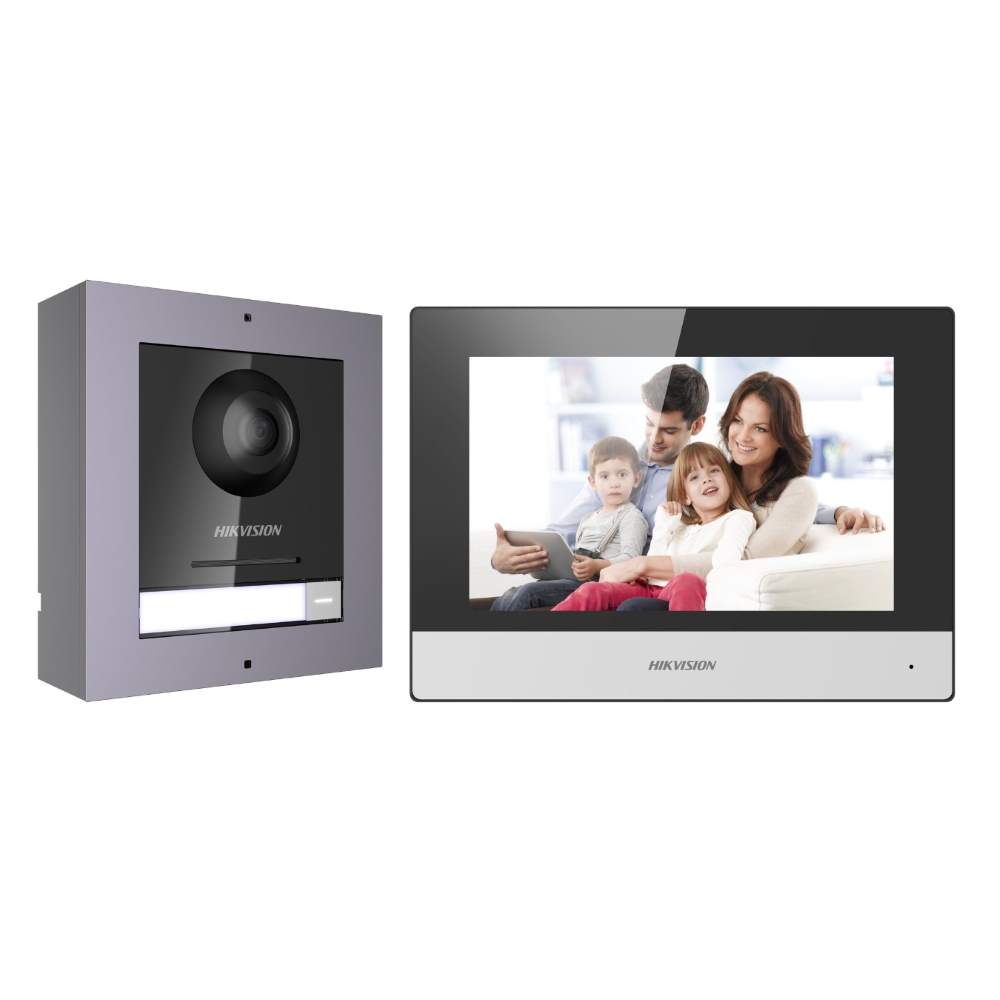

Hikvision 2nd Gen IP Intercom Kit, 1 to 1 Modular, PSU, Surface Mount

The Hikvision HIK-KIS602 is a one-to-one IP modular bundle which features a single button door station and a 7 inch room station, both enabled with Wi-Fi. This 2nd generation bundle is perfect for any sites that have the potential of expanding, as it includes a PoE switch. For expansion, all you'll need to do is purchase the additional intercom units. It also includes the required power supplies and a 16GB SD card, simplifying the ordering process and ensuring a smooth setup.

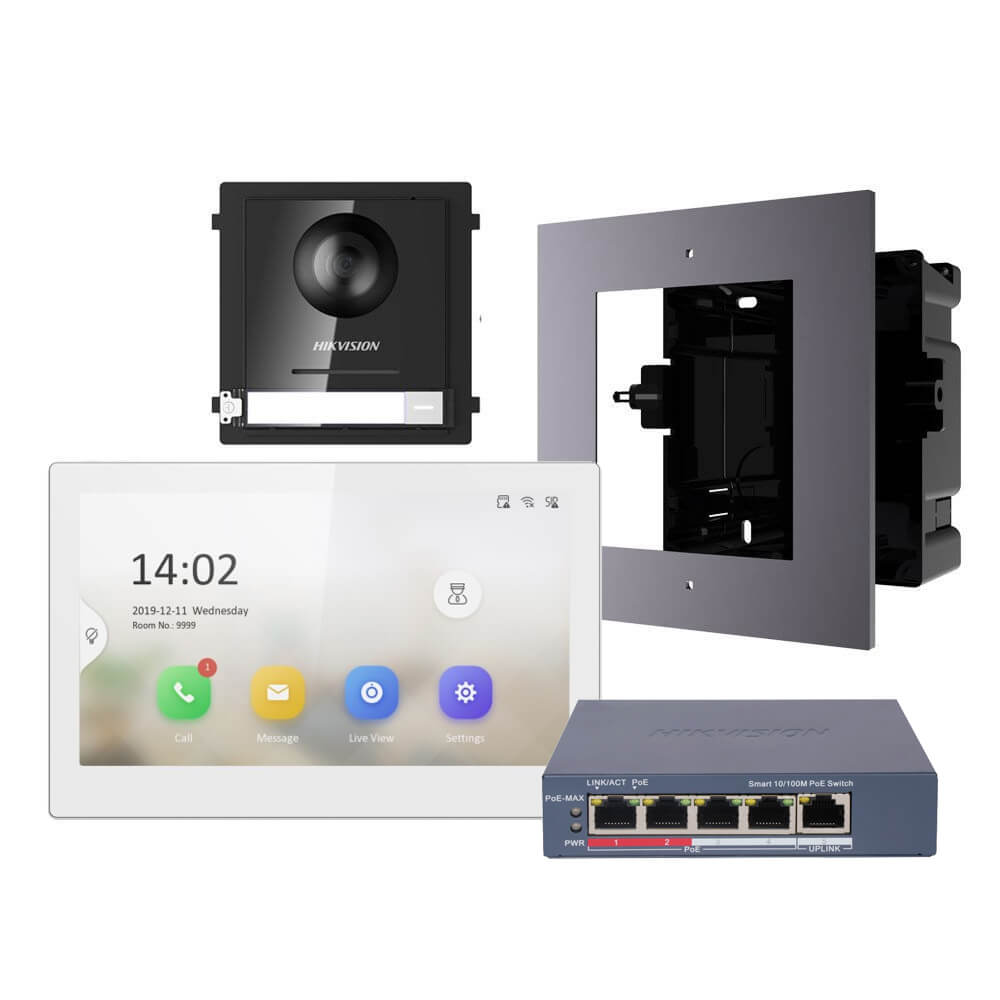

Bundle inclusions:

• 1x HIK-KD8003-IME1
• 1x HIK-KD-ACW1
• 1x HIK-KH6320-WTE1
• 1x HIK-3E0105P-E
• 1x 16GB SD card

IP Modular Door Station

• Single button
• 2MP HD video intercom function
• Access control function
• Noise suppression and echo cancellation
• Low illumination
• Tampering alarm supported
• Fisheye camera with IR supplement light
• Supports up to 8 sub-modules
• Nametag customisation
• Easy to expand

IP Room Station

• 7 inch colour touch screen
• Built-in omnidirectional microphone
• Stores messages and captured pictures in the TF card (if inserted)
• Remote unlocking via client software or mobile client
• View live videos of door stations and linked cameras
• Supports wireless network (Wi-Fi)

Datasheets

• HIK-KIS602 Datasheet.pdf

IP Modular Door Station

• Relay output: 2
• Video resolution: 1920 x 1080p, 720 x 480
• Video coding: H.264
• Lens: H: 180 degrees, V: 96 degrees
• RS-485: for secure door module
• Network protocol: TCP/IP, RTSP
• Weatherproof rating: IP65
• Mount: surface
• Power: 12V DC
• Power draw: less than 10W
• Dimensions: 98 x 99.8 x 43.9mm

IP Room Station

• Display resolution: 1024 x 600
• Display size: 7 inch
• Alarm input: 8 channels
• Relay output: 2
• Dimensions: 200 x 140 x 15.1mm
