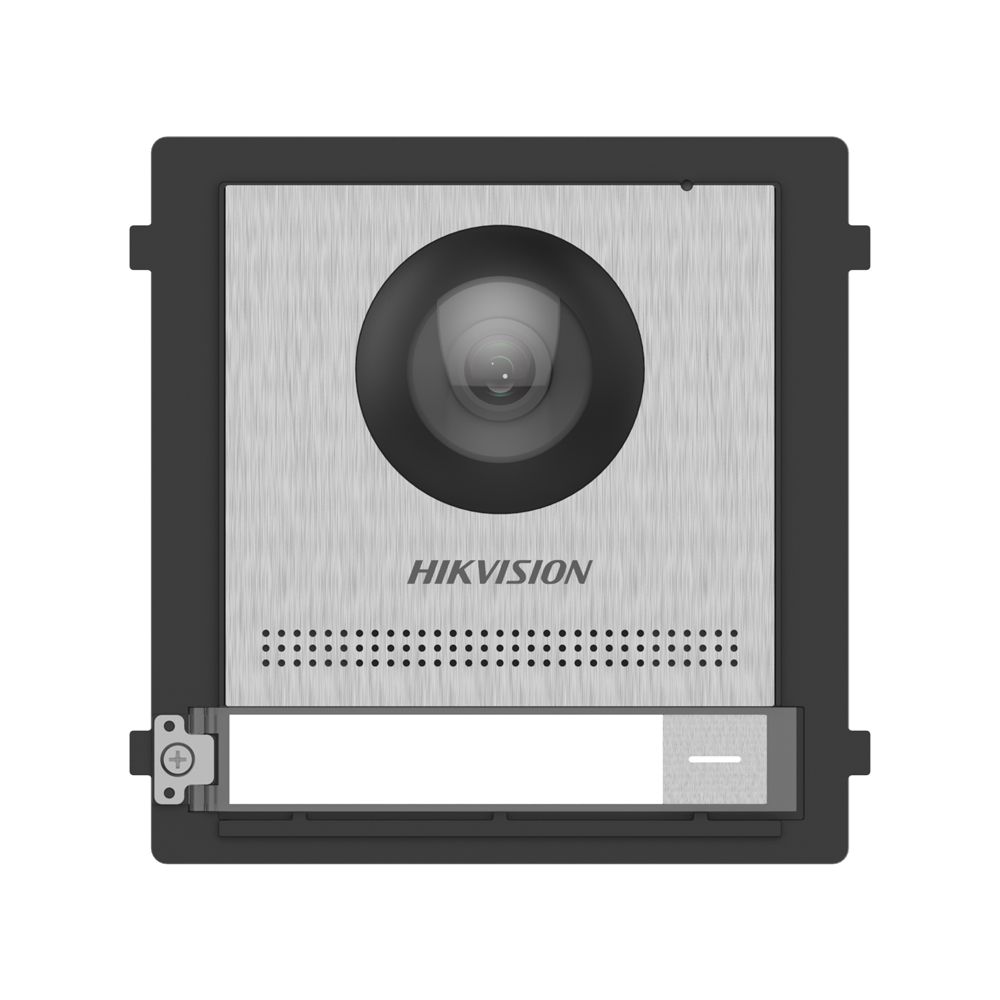

Hikvision 2nd Gen IP Intercom Door Station, 1 Button, IP65, 12VDC, POE, Stainless Steel

Hikvision's HIK-KD8003-IME1S is the stainless steel version of the single button modular door station. This robust model is designed to withstand harsher weather conditions suiting a wider range of outdoor applications.

This range is perfect for site upgrades as this model can be easily retrofitted from standard model and is compatible with the whole range of IP and 2-wire intercoms, including all door modules. The modular design adds the much-needed flexibility as it suits smaller sites such as residential installations which are one to one, all the way through to large apartment complex deployments with numerous room and door stations.

• Wide angle lens
• High definition camera
• Wide Dynamic Range
• Web based interface
• Standard PoE
• Infrared LED illumination
• Motion detection
• Noise suppression and echo cancellation
• Support of display, indicator, keypad, card reader and 6-button modules
• Single button
• Stainless steel

Datasheets

• HIK-KD8003-IME1S Datasheet.pdf

• Camera: 2MP HD
• Video codec: H.264
• Resolution: 1920 x 1080 (main), 720 x 580 (sub)
• Field of view: 180 degrees (H), 96 degrees (V)
• Stream support: Hikvision protocol, RTSP & ONVIF
• Output: 2x 2A relays & 12V DC @ 3A
• Power: 48V PoE or 12V DC
• Power consumption: 10W MAX
• Dimensions: 98mm x 100mm x 44mm
