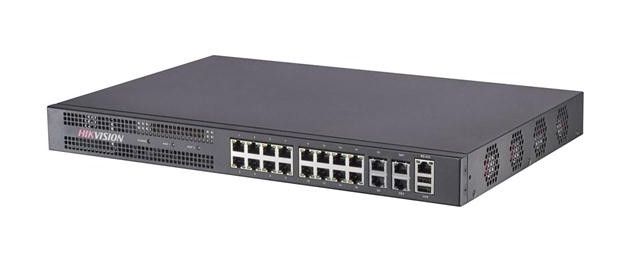

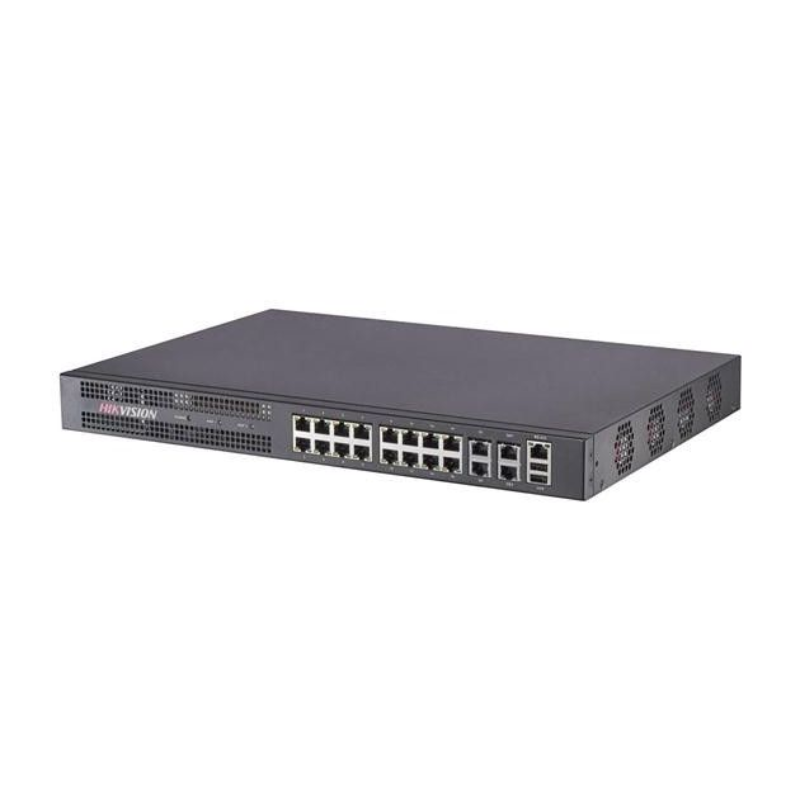

Designed for high-definition video monitoring systems, the Hikvision HIK-6908UDI Decoder is developed based on embedded hardware platform, ensuring high reliability and stability of system running. The HIK-6908UDI Decoder is capable 24MP at 30fps: 4-ch, 12MP at 20fps: 8-ch, 8MP at 30fps: 16-ch, 5MP at 30fps: 24-ch, 3MP at 30fps: 40-ch, 1080p at 30fps: 64-ch simultaneous decoding, and outputting decoded video via BNC or HDMI interfaces. It also supports multiple video stream formats like H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG. The decoded video can be displayed on a video wall or large screen.

• HDMI (adaptable to DVI-D) and BNC output interfaces
• Up to 4K (3840 x 2160@30Hz) via HDMI output interfaces (only for odd interface)
• H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression
• Decoding Capability 24MP@30fps: 4-ch, 12MP@20fps: 8-ch, 8MP@30fps: 16-ch, 5MP@30fps: 24-ch, 3MP@30fps: 40-ch, 1080p@30fps: 64-ch
• Supports multi-screen control with PC installed with RSC server
• Flexible display configuration options
• Provides local VGA and DVI input interfaces

Datasheets

• HIK-6908UDI Datasheet.pdf

User Manuals

• HIK-6908UDI User Manual.pdf
