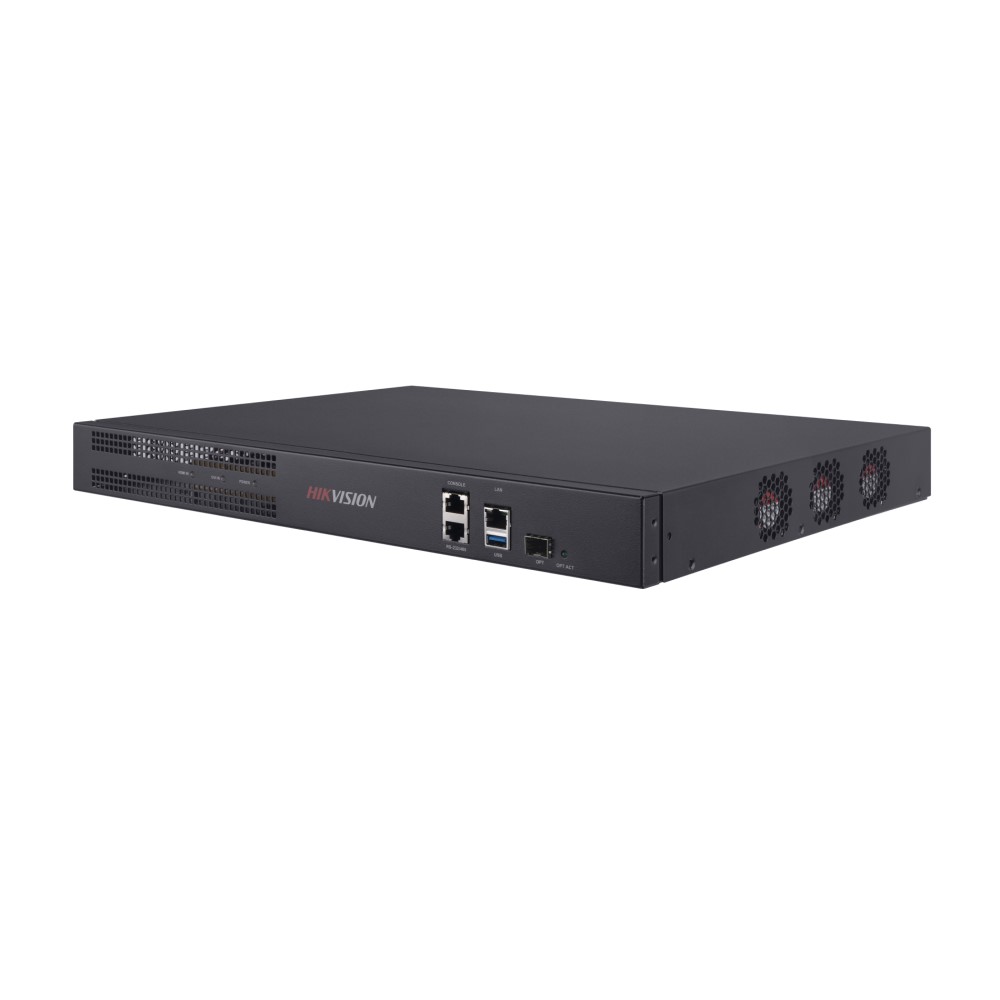

Hikvision 4K Network Decoder, 4x HDMI output, 2x BNC output, up to 72x 720p

Designed for high-definition video monitoring systems, the Hikvision HIK-6904UDI Decoder is developed based on embedded hardware platform, ensuring high reliability and stability of system running. The HIK-6904UDI Decoder is capable 24MP at 30fps: 2-ch, 12MP at 20fps:4-ch, 8MP at 30fps: 8-ch, 5MP at 30fps: 12-ch, 3MP at 30fps: 20-ch, 1080p: 36-ch, 720p: 72-ch simultaneous decoding, and outputting decoded video via BNC or HDMI interfaces, and it also supports multiple video stream formats like H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG. The decoded video can be displayed on a video wall or large screen.

• HDMI (adaptable to DVI-D) and BNC output interfaces
• Up to 4K (3840 x 2160@30Hz) via HDMI output interfaces (only for odd interface).
• H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
• G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
• Decoding Capability 24MP at 30fps: 2-ch, 12MP at 20fps:4-ch, 8MP at 30fps: 8-ch, 5MP at 30fps: 12-ch, 3MP at 30fps: 20-ch, 1080p: 36-ch, 720p: 72-ch.
• Supports multi-screen control with PC installed with RSC server.
• Flexible display configuration options
• Provides local HDMI and DVI-I input interfaces.

Datasheets

• HIK-6904UDI Datasheet.pdf

User Manuals

• HIK-6904UDI User Manual.pdf
