Hikvision Network Keyboard, 4 Axis Joystick, USB, RS-232, RS-22, RS-485, 12VDC

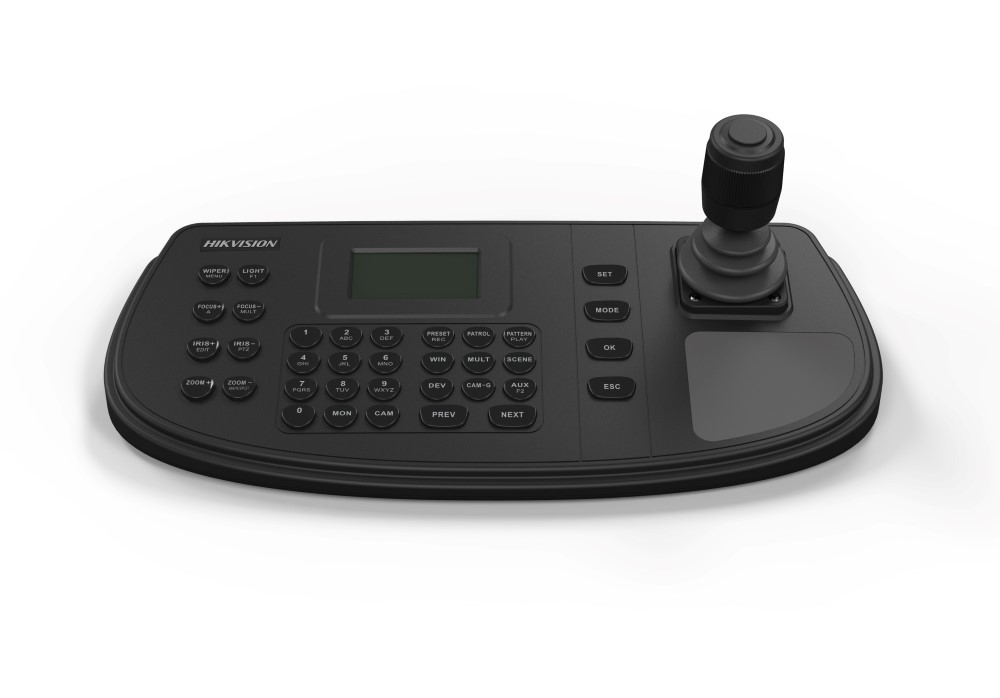

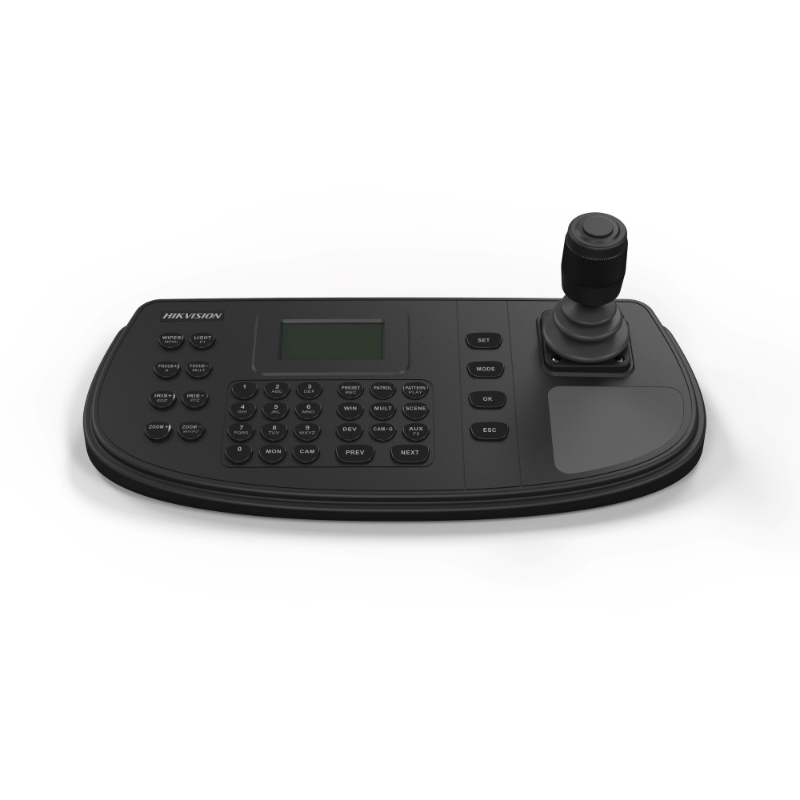

Hikvision's HIK-1200KI is network keyboard with joystick designed to operate PTZ cameras, video recorders and video wall controllers via network access. configurable via a web browser, the keyboard is capable of supporting up to 1000 devices.

• 128 x 64 screen
• 4-axis joystick
• Connectable to the Multi-functional Video Center (MVC), Matrix Access Gateway (VAG), Video Wall Controller, decoder, etc.; and shortcut operation of camera/camera groups switch on video wall
• Connectable to dome and realise PTZ control and picture capture by joystick operation
• Connectable to DVR via network or serial port, and operation of front panel buttons
• 16 user accounts management: 1 admin and 15 operators
• System upgrade and import / export of configuration files by USB-flash disk
• Captured pictures(FAT32) can be stored in U-flash disk
• Network access and configuration by web browser support; and up to 1000 devices can be managed in the keyboard operation mode

Datasheets

• HIK-1200KI Datasheet.pdf

User Manuals

• HIK-1200KI User Manual.pdf

• Control mode: RS-232, RS-422, RS-485
• Network interface 1; 10 M/100 Mbps self-adaptive Ethernet interface
• Serial interface: 1x RS-232, 1x RS-422, 1x RS-485
• USB interface: 1x USB 2.0
• Power supply: 12 VDC
• Working humidity 10% to 90%
• Dimensions: (W x D x H) 435 x 193 x 110 mm
• Weight: 1kg
