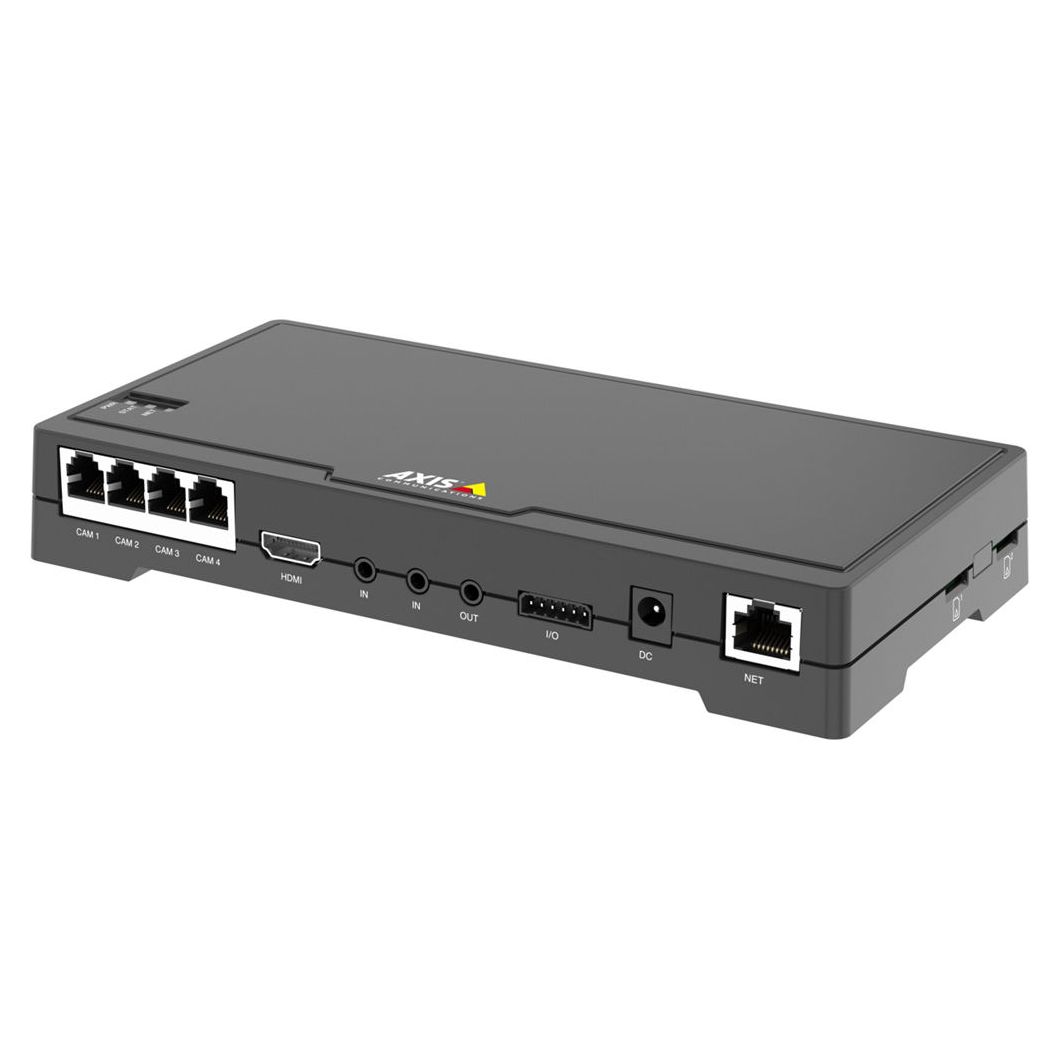

AXIS FA54 Main Unit to suit FA Series Sensor Units, 1080p, WDR, Zipstream, Audio,

The AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost-effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address. Ideal for retail applications, AXIS FA54 also supports quad view streaming and has an HDMI TM port for connection to a surveillance or public view monitor. The unit uses Forensic WDR (wide dynamic range) that is tuned for motion. Axis Zipstream video compression technology reduces bandwidth and storage requirements.

• Full frame rate HDTV 1080p streams from four sensor units
• Forensic WDR
• Quad view stream, Axis Zipstream and Corridor Format
• HDMI output, two-way audio, I/Os, two microSD card slots, 12 V DC

Datasheets

• AXIS-0878-001 Datasheet.pdf

User Manuals

• AXIS-0878-001 User Manual.pdf

• Axis zipstream technology in H.264
• 1920 x 1080 to 480 x 270 resolution
• Forensic WDR
• HDMI
• 1024 MB RAM, 512 MB flash
• 12VDC, maximum 30W power
