The HID-20NKS-00 combines versatility, performance and connected capabilities with the Signo range, creating a flexible and powerful access control solution. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

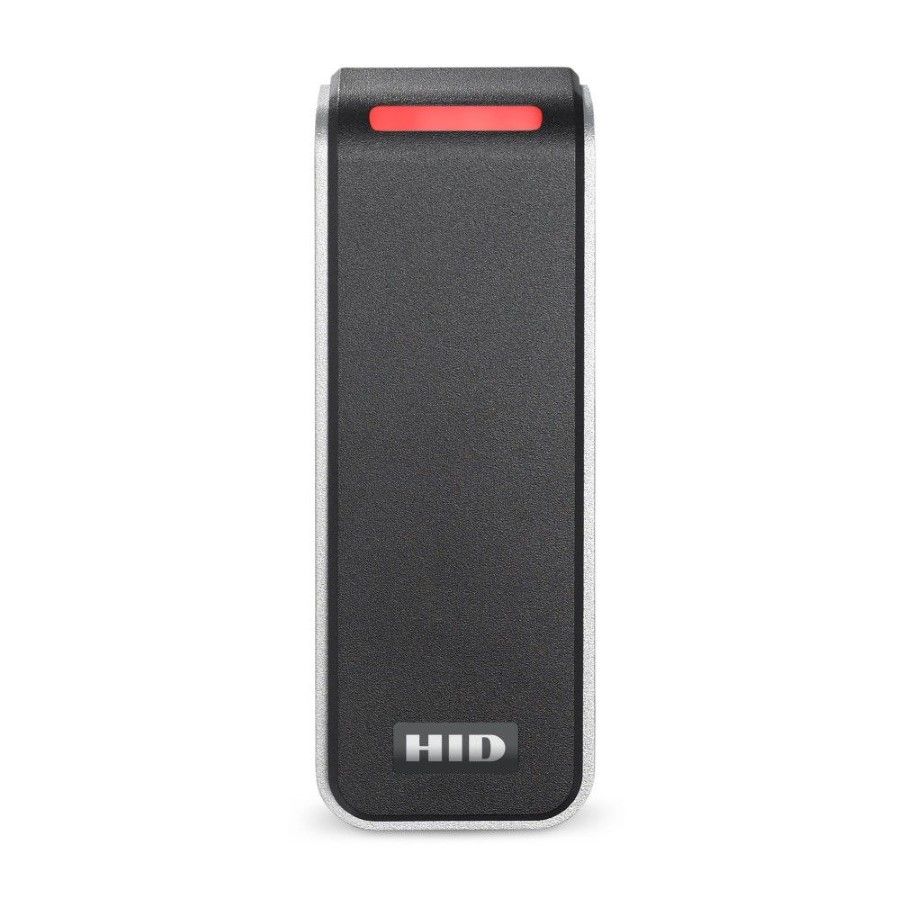

The HID-20NKS-00 slim profile reader is compatible with all high frequency technologies and has mobile capabilities right out of the box. Its versatility makes it suitable for most installations.

• Mobile support right out of the box
• Sleek and slim profile
• Pigtail wiring
• Configurable with Mobile Reader Manager App:
• LED colour
• OSDP - Address and baud rate
• CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
• Technology suppression
• Load mobile keys
• Bluetooth power range

Datasheets

• HID Signo Reader Datasheet.pdf
• HID Signo Part Number Guide.pdf

• Operating voltage: 12V DC
• Standby current: 60mA
• Average current: 70mA
• Max current: 250mA
• Operating temp: -35 degrees C to +66 degrees C
• Dimensions: 45mm x 121.5mm x 19.5mm
• Weight: 95g
• Wiring: Pigtail

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

• iClass Family
• iClass (legacy)
• iClass SE
• SEOS
• Mifare Family
• Classic (with SIO encoding)
• EV1/EV2 (with SIO encoding)
• CSN/UID

125KHz Low Frequencies

• HID PROX
• Indala (ASP10022 26-bit open format)
• EM (EM4100 32-bit format)
