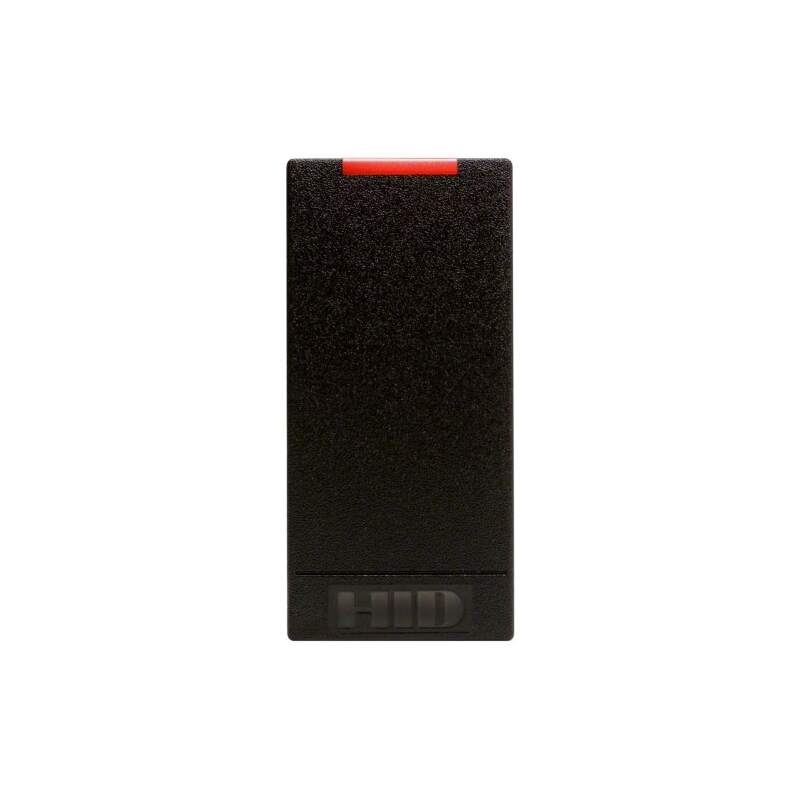

The HID-900NBNNFK iCLASS SE SEOS Express R10 reader is designed to simplify the selection process by offering a cost effective, fixed configuration that combines SEOS physical credential compatibility along with Bluetooth Low Energy (BLE) to support HID Mobile Access. This reader comes as mobile ready, meaning that a mobile key is not pre-loaded but can be loaded on site using the HID Reader Manager app and only supports Wiegand communication and pigtail wiring.

• Mobile support right out of the box
• R10 build quality and aesthetics
• Pigtail wiring
• Configurable with Mobile Reader Manager App

Datasheets

• HID-900NBNNFK Datasheet.pdf

• Operating voltage: 12V DC
• Standby current: 28mA
• Average current: 46mA
• Max current: 250mA
• Operating temp: -35 degrees C to +65 degrees C
• Dimensions: 48mm x 103mm x 23mm (W x H x D)
• Weight: 92g
• Wiring: Pigtail
• Supported Technologies - SEOS Profile:
• 13.56MHz High Frequencies
• SEOS
• BLE Mobile
