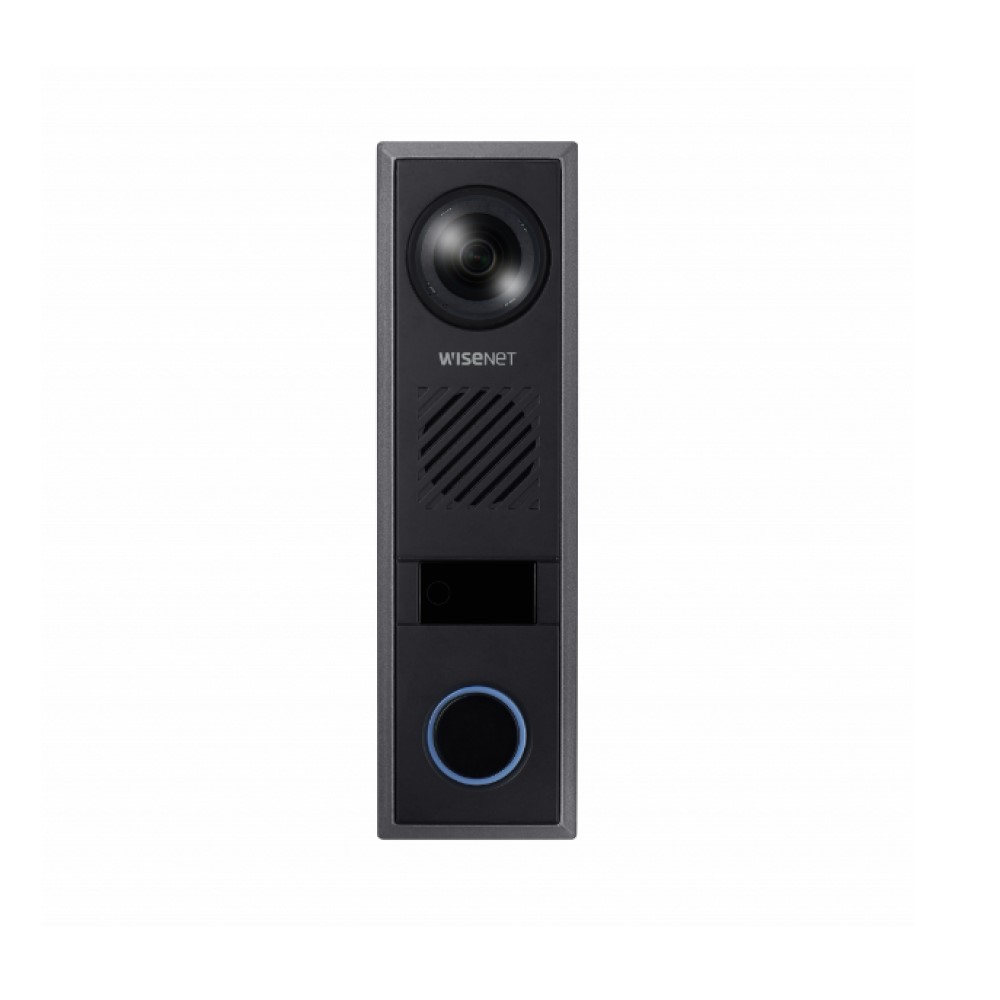

Hanwha 2MP Intercom Door Station, 5m IR, IP65, IK08, 1.6mm Fixed Lens

The Hanwha Wisenet HAN-TID-600R is a video intercom with touchless call and a built-in tamper switch. The surface mount door station offers a built-in microphone and speaker, a 2MP sensor with an IR length of 5 meters and a fixed focal length of 1.6mm.

• 1/2.8 inch 2MP sensor
• 1.6mm fixed lens: HFoV 180 degrees, VFoV 114 degrees
• IR viewable length 5m
• Built-in mic and speaker : 85dB speaker out at 0.5m
• Echo cancellation and noise reduction
• Touchless call, Built-in tamper switch
• SIP 2.0 support
• MicroSD 1slot, PoE/12VDC
• Max. 550mA relay out with 2A 12VDC adapter
• IP65, IK08, NEMA4X

Datasheets

• HAN-TID-600R Datasheet.pdf
