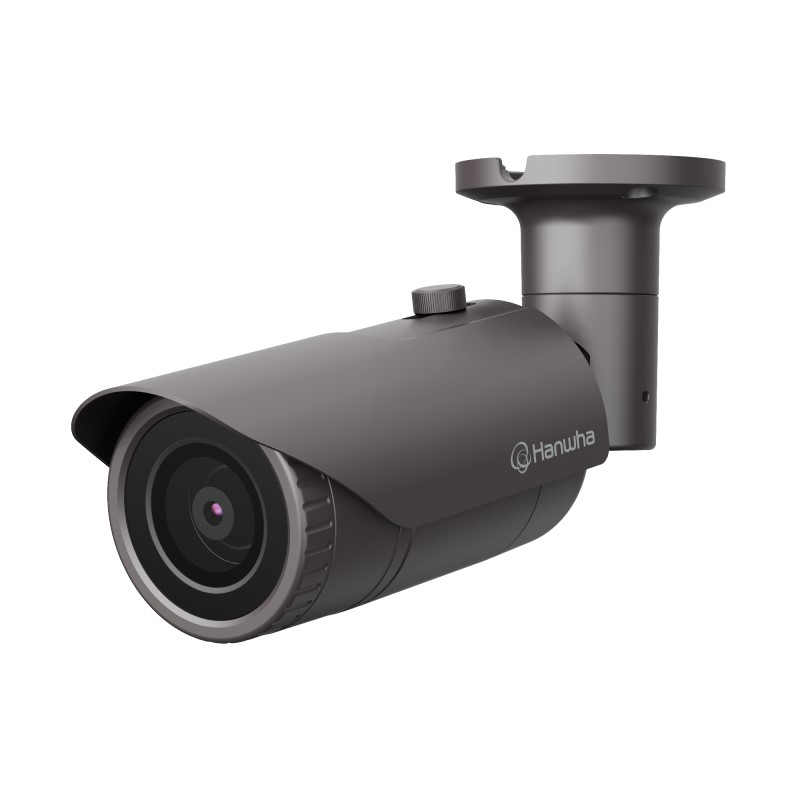

The Hanwha HAN-QNO-8020R is a 5MP network IR bullet camera that offers essential features for creating a safe and secure environment. It has a 4mm fixed lens that provides a wide-angle view of up to 80 degrees. It also has integrated infrared LEDs that enable clear night vision up to 25 meters. The camera supports H.265, H.264, and MJPEG codecs, as well as multiple streaming and WiseStream II video compression. The HAN-QNO-8020R has a built-in video analytics function that can detect various events, such as tampering, motion, defocus, and directional detection. It is durable and resistant to water, dust, impact, and corrosion, with IP66, IK10, and NEMA4X ratings. The camera also has a micro-SD memory slot that can store up to 128GB of data.

The HAN-QNO-8020R is compatible with the Hanwha Vision software and mobile app, which allow remote access and control, as well as live monitoring and playback. The HAN-QNO-8020R is a suitable camera for applications that require high-quality and reliable surveillance, such as airports, stadiums, parking lots, and intersections.

For more information visit HanwhaVision.com

• Max. 5MP resolution
• 4mm fixed lens
• Max. 15fps at 5MP
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & night (ICR), WDR (120dB)
• Motion detection, tampering, defocus detection
• IR Viewable length 25m
• Hallway view, WiseStream II support

Datasheets

• HAN-QNO-80x0R Datasheet.pdf

• 1/2.8" CMOS
• 4mm fixed lens, F1.6
• Colour: 0.15Lux (F1.6, 1/30sec, 30IRE)
• BW: 0.015Lux (F1.6, 1/30sec, 30IRE), 0 Lux (IR LED on)
• RJ-45 10/100 base-T ethernet
• Micro SD/SDHC/SDXC 1 slot 128GB
• PoE (IEEE802.3af, Class3)
• IP66, IK10
• Dark grey, aluminium
• Dimensions: 70 x 246mm
• Weight: 680g
