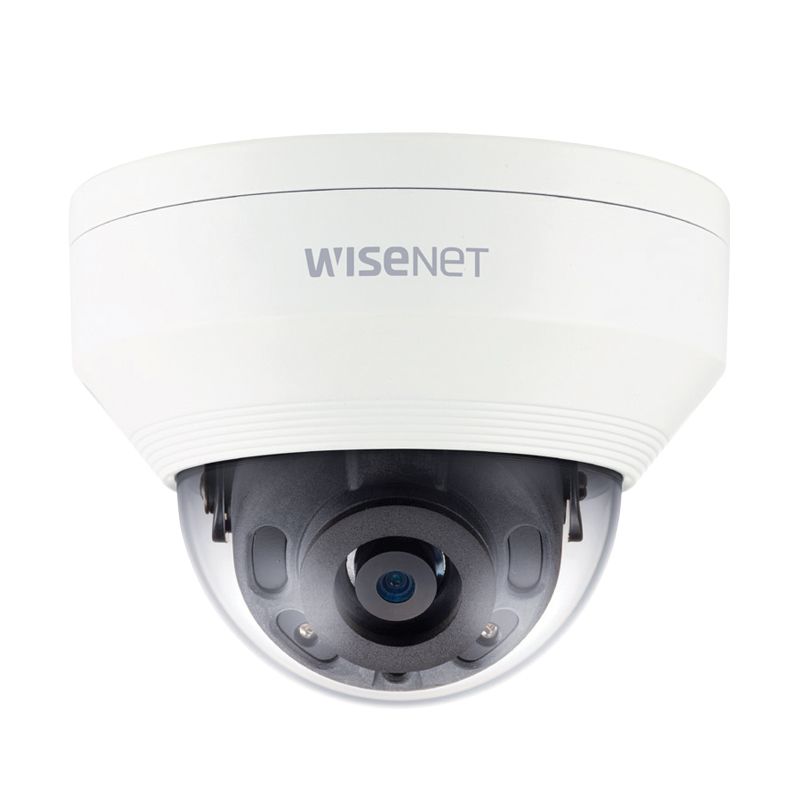

Hanwha Wisenet NEW-Q 5MP Outdoor Dome Camera, H.265, WDR, 20m IR, IP66, IK10, 4mm

Hanwha's 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the HAN-QNV-8020R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha HAN-QNV-8020R offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.

• Max. 5MP resolution
• 4mm fixed lens
• Max. 30fps at 5MP
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & night, WDR (120dB)
• Motion detection, tampering, defocus detection
• 25m IR
• Hallway view, Wisestream II support

Datasheets

• HAN-QNV-80x0R Datasheet.pdf

• 1/2.8" 5MP CMOS progressive scan
• 4mm fixed lens, F1.6
• Colour: 0.15 lux
• B/W: 0 lux (IR LED on)
• Pan range: 0 - 350 degrees
• Tilt range: 0 - 67 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC (max. 128GB), PoE
• IP66
• IK10
• PoE (IEEE802.3af, Class3) / 12V DC
