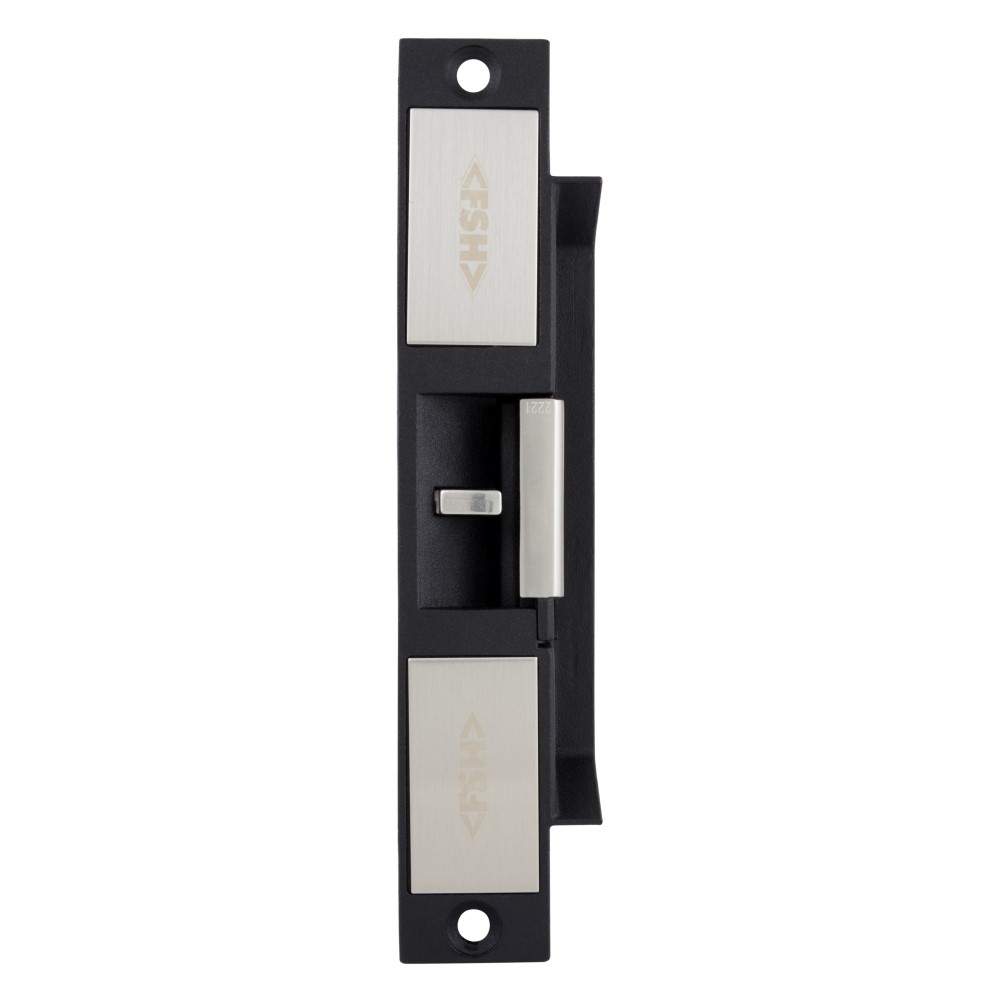

FSH FES20M High Security Strike, Monitored, 1200kg, 12/24V DC

The FSH-FES20M is part of the patented FES20 series of high security electric strikes that are manufactured from stainless steel, accept voltages from 11 to 30V DC and have a simple and unique Power To Lock (PTL) / Power To Open (PTO) field interchangeable mechanism. All FES20 strikes come with a 10mm strike lip as standard, have pre-drilled threaded cavities for extension lips and are available in monitored and non-monitored models. Included with a mounting kit and no loose screws or pins, installation is a breeze.

• Simple Power To Lock/Power To Open mechanism
• No loose screws, pins, or springs
• Pre-drilled threaded cavities for extension lips
• Mounting kit included
• Lock status sensor
• Door position sensor
• Anti-tamper sensor

Datasheets

• FSH-FES20M Datasheet.pdf

• Holding strength: 1,200kg
• Power input: 11 to 30V DC
• Max current draw at 12V: 220mA
• Max current draw at 24V: 120mA
• Dimensions: 30mm (W) x 175.6mm (H) x 23mm (D)
• Outputs: Lock status, door position and anti-tamper
