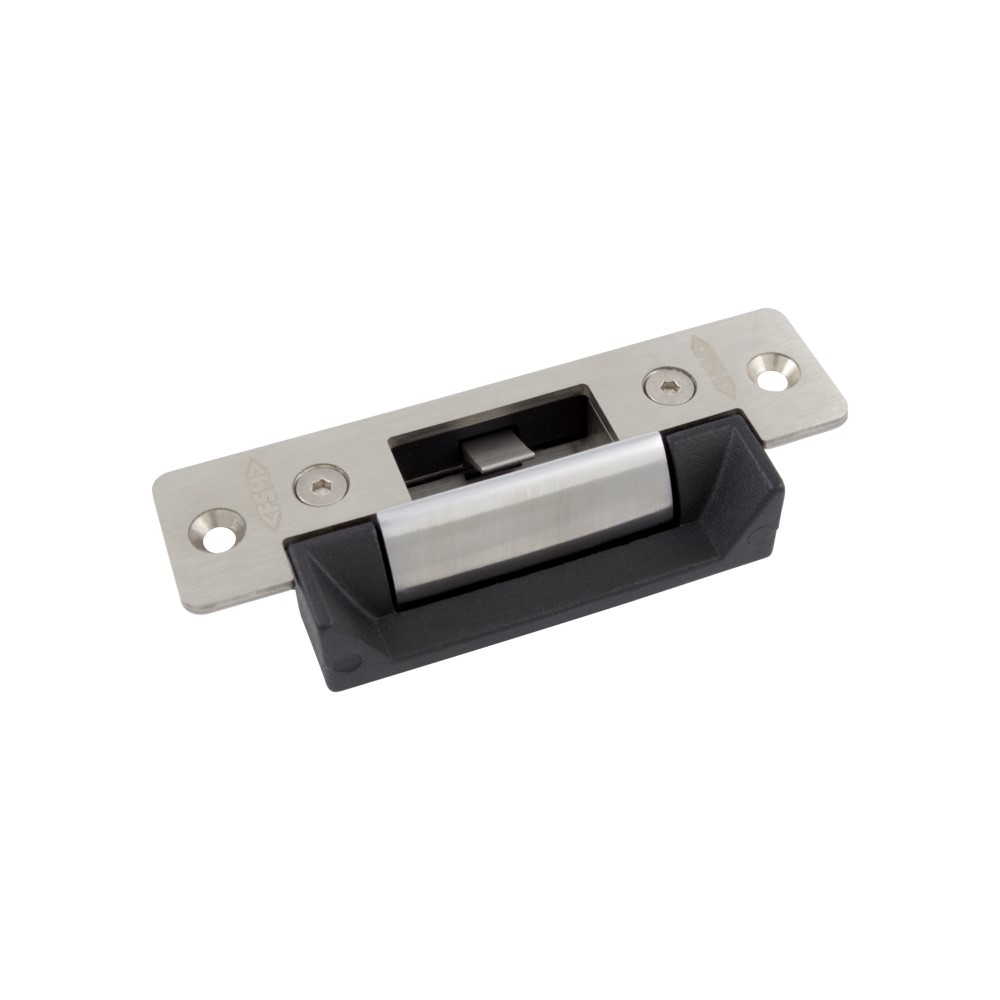

FSH FES10 Strike, Non-Monitored, up to 1000kg, 12/24V DC, IP56

FSH-FES10
AVAILABLE TO ORDER
FSH FES10 Strike, Non-Monitored, up to 1000kg, 12/24V DC, IP56

The FSH-FES10 is part of the FES10 series of electric strikes which are designed for light commercial and residential applications. With a small ANSI footprint, the strikes accept either 12 or 24VDC input and are easily Power To Lock (PTL) / Power To Open (PTO) field interchangeable. The strike is pre-drilled with threaded cavities to cater for extension lips, have a holding strength of up to 1000kg and come in a monitored and non-monitored model.

  • Stainless steel faceplate and keeper
  • Low power consumption
  • Compatible with door latch depth of up to 15mm
  • 12 or 24VDC operation
  • Pre-drilled threads for extension lips

  • Holding strength: 1,000kg
  • Power input: 12V or 24V DC
  • Max current draw at 12V: 200mA
  • Max current draw at 24V: 100mA
  • Weather rating: IP56
  • Dimensions: 125mm (L) x 42mm (W) x 35mm (D)

No description available for this product
  • Holding strength: 1,000kg
  • Power input: 12V or 24V DC
  • Max current draw at 12V: 200mA
  • Max current draw at 24V: 100mA
  • Weather rating: IP56
  • Dimensions: 125mm (L) x 42mm (W) x 35mm (D)
