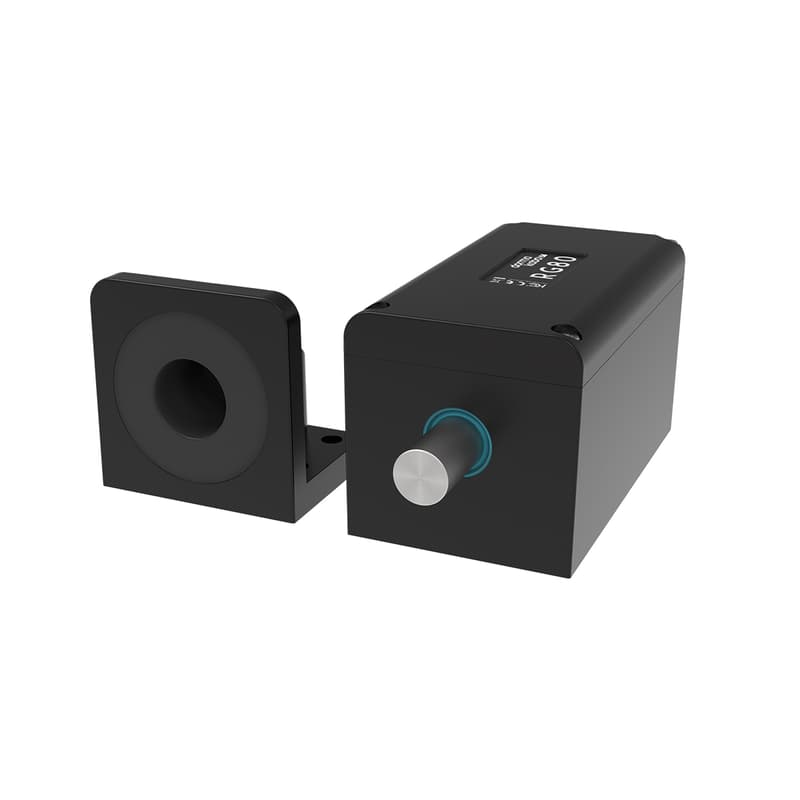

Dormakaba RG80 Lock Strike, PTO/PTL, 12-24V DC, IP67
DK-RG80-LOCK
AVAILABLE TO ORDER
Dormakaba RG80 Lock Strike, PTO/PTL, 12-24V DC, IP67
The Dormakaba DK-RG80-LOCK is a high-strength lock designed for securing gates, roller doors, shipping containers and any other commercial door or entry way. The RG80 offers IP67 weather rating with an E-coated aluminium lock body and strike for corrosion resistance, and a built-in heater for continued functionality in extreme cold environments.
- Fail safe/fail secure (dipswitch configurable)
- Low current consumption (heater off)
- IP67 ingress protection rating
- Built in heater for extreme cold environments
- Bolt locked and unlocked monitoring
- Door position monitoring
- Anti-tamper detection monitoring
- Door gap: maximum 15mm
- Holding force: 5000kgs
- Dynamic strength: 200 joules
- Weather rating: IP67
- Voltage: 12-24VDC
- Voltage tolerance: +/-15 percent
- Standby: 40mA/12VDC, 30mA/24VDC
- Maximum: 1.0A/12VDC, 0.FA/24VDC
- Heater on (24VDC only): 2.0A/24VDC
- Monitors switches: 24VDC, 025A
- Operating temperature: -35 degrees to +70 degrees
- Lock/strike material: aluminium 383
- Bolt pin material: stainless steel 304
- Strike ring material: UV stabilised ABS
