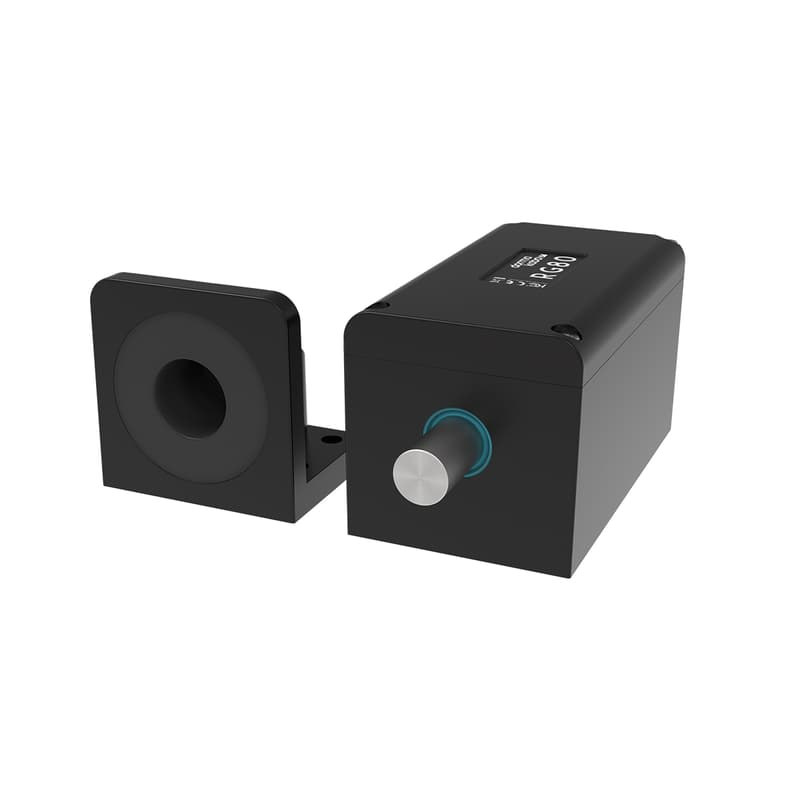

Dormakaba RG80 Lock Strike, PTO/PTL, 12-24V DC, IP67

The Dormakaba DK-RG80-LOCK is a high-strength lock designed for securing gates, roller doors, shipping containers and any other commercial door or entry way. The RG80 offers IP67 weather rating with an E-coated aluminium lock body and strike for corrosion resistance, and a built-in heater for continued functionality in extreme cold environments.

• Fail safe/fail secure (dipswitch configurable)
• Low current consumption (heater off)
• IP67 ingress protection rating
• Built in heater for extreme cold environments
• Bolt locked and unlocked monitoring
• Door position monitoring
• Anti-tamper detection monitoring

Datasheets

• DK-RG80-LOCK Datasheet.pdf

• Door gap: maximum 15mm
• Holding force: 5000kgs
• Dynamic strength: 200 joules
• Weather rating: IP67
• Voltage: 12-24VDC
• Voltage tolerance: +/-15 percent
• Standby: 40mA/12VDC, 30mA/24VDC
• Maximum: 1.0A/12VDC, 0.FA/24VDC
• Heater on (24VDC only): 2.0A/24VDC
• Monitors switches: 24VDC, 025A
• Operating temperature: -35 degrees to +70 degrees
• Lock/strike material: aluminium 383
• Bolt pin material: stainless steel 304
• Strike ring material: UV stabilised ABS
