Dormakaba KML-CCW30 Electric Mag Single Lock, Surface Mount, 135kg
DK-KML-CCW30
AVAILABLE TO ORDER
Dormakaba KML-CCW30 Electric Mag Single Lock, Surface Mount, 135kg

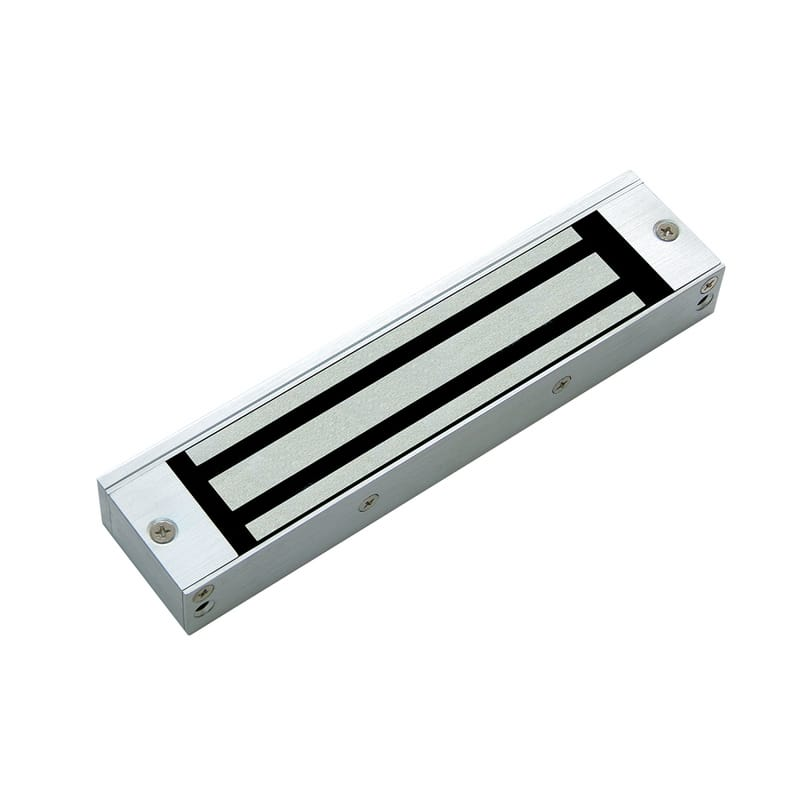

The Dormakaba DK-KML-CCW30 is a surface mounted electromagnetic lock which can be used on single doors. It has a holding force 135 kilograms and dual voltage with lock sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved, with a 2-hour fire rating.
- Surface mounted - single door
- Built-in voltage spike suppressor
- LED monitor
- Lock sensor (hall effect IC)
- Dimensions: 165L x 38.5W x 21D(mm) with mounting plate
- Armature Plate Dimensions: 130L x 32W x 8D(mm)
- Holding strength: 135kg
- Operating voltage: 12/24VDC
- Current draw: 360mA/12VDC, 180mA/24VDC
- Material: brushed anodized aluminium housing, zinc plated steel armature
Datasheets
No description available for this product
- Dimensions: 165L x 38.5W x 21D(mm) with mounting plate
- Armature Plate Dimensions: 130L x 32W x 8D(mm)
- Holding strength: 135kg
- Operating voltage: 12/24VDC
- Current draw: 360mA/12VDC, 180mA/24VDC
- Material: brushed anodized aluminium housing, zinc plated steel armature
