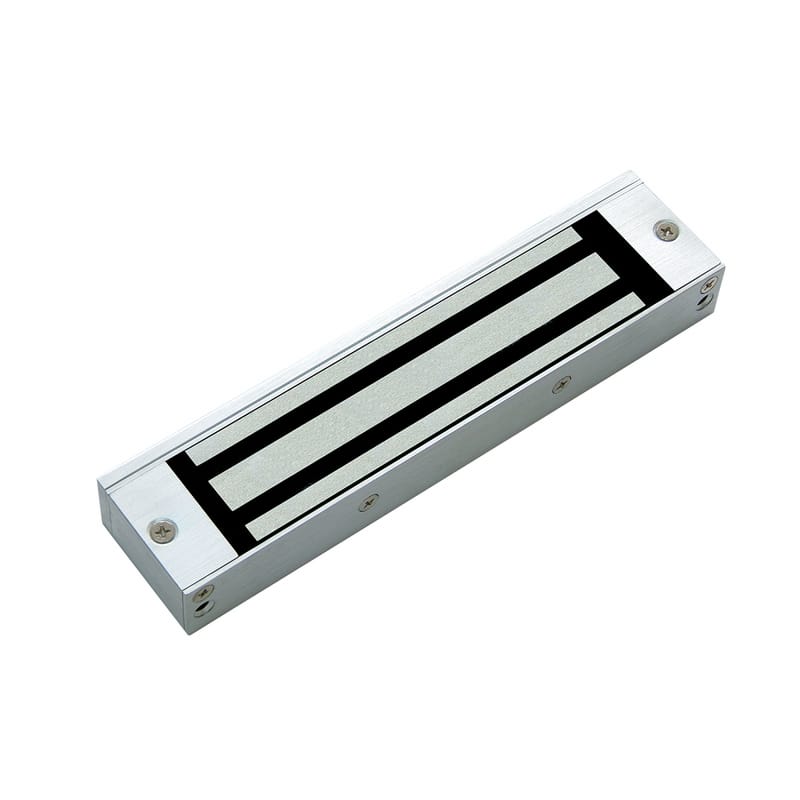

Dormakaba KML-CCW30 Electric Mag Single Lock, Surface Mount, 135kg

The Dormakaba DK-KML-CCW30 is a surface mounted electromagnetic lock which can be used on single doors. It has a holding force 135 kilograms and dual voltage with lock sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved, with a 2-hour fire rating.

• Surface mounted - single door
• Built-in voltage spike suppressor
• LED monitor
• Lock sensor (hall effect IC)

Datasheets

• DK-KML-CCW30 Datasheet.pdf

• Dimensions: 165L x 38.5W x 21D(mm) with mounting plate
• Armature Plate Dimensions: 130L x 32W x 8D(mm)
• Holding strength: 135kg
• Operating voltage: 12/24VDC
• Current draw: 360mA/12VDC, 180mA/24VDC
• Material: brushed anodized aluminium housing, zinc plated steel armature
