Dormakaba KML-5000G Electric Mag Gate Lock, Surface Mount, 540kg, IP65

DK-KML-5000G
AVAILABLE TO ORDER
Dormakaba KML-5000G Electric Mag Gate Lock, Surface Mount, 540kg, IP65
Warehouse Status
Seven Hills - NSW
AVAILABLE TO ORDER
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
AVAILABLE TO ORDER
Balcatta - WA
AVAILABLE TO ORDER

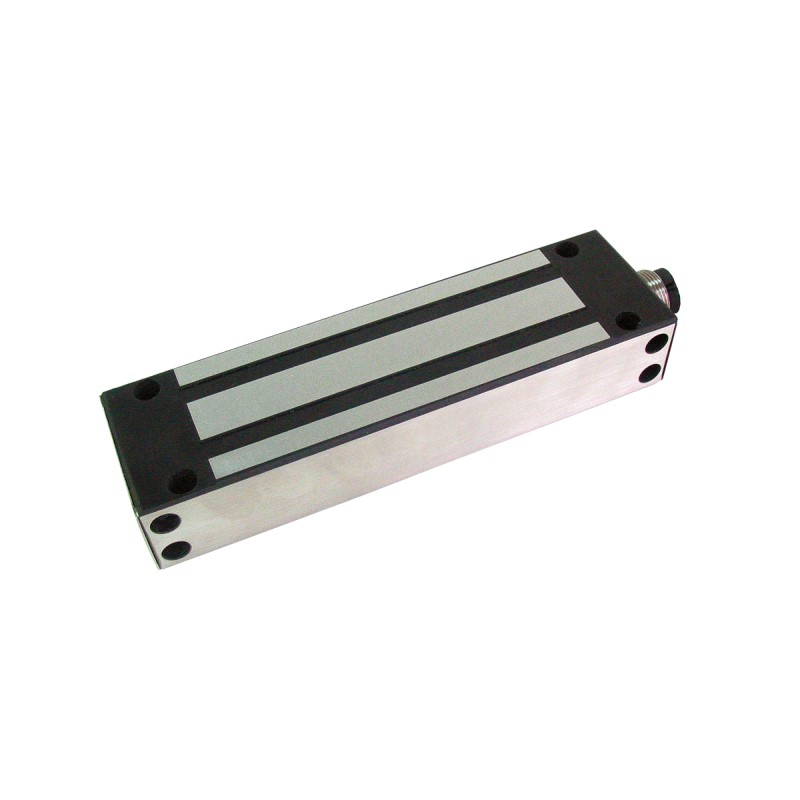

The Dormakaba DK-KML-5000G is a surface mounted electromagnetic gate lock which can be used on single, double doors and gates. It has a holding force of 540 kilograms and dual voltage with lock sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved.

  • Dimensions: 203L x 63W x 40D(mm)
  • Armature Plate Dimensions: 185L x 61W x 16D(mm)
  • Holding strength: 540kg
  • Operating voltage: 12/24VDC
  • Current draw: 500mA/12VDC, 250mA/24VDC
  • Material: stainless steel housing
  • Weatherproof rating: IP65

  • Surface mounted - single doors, double swing doors, sliding doors and gates
  • Built-in voltage spike suppressor
  • Lock sensor (hall effect IC)
  • Multiple fixing (standard) - face fix and underside

Datasheets
