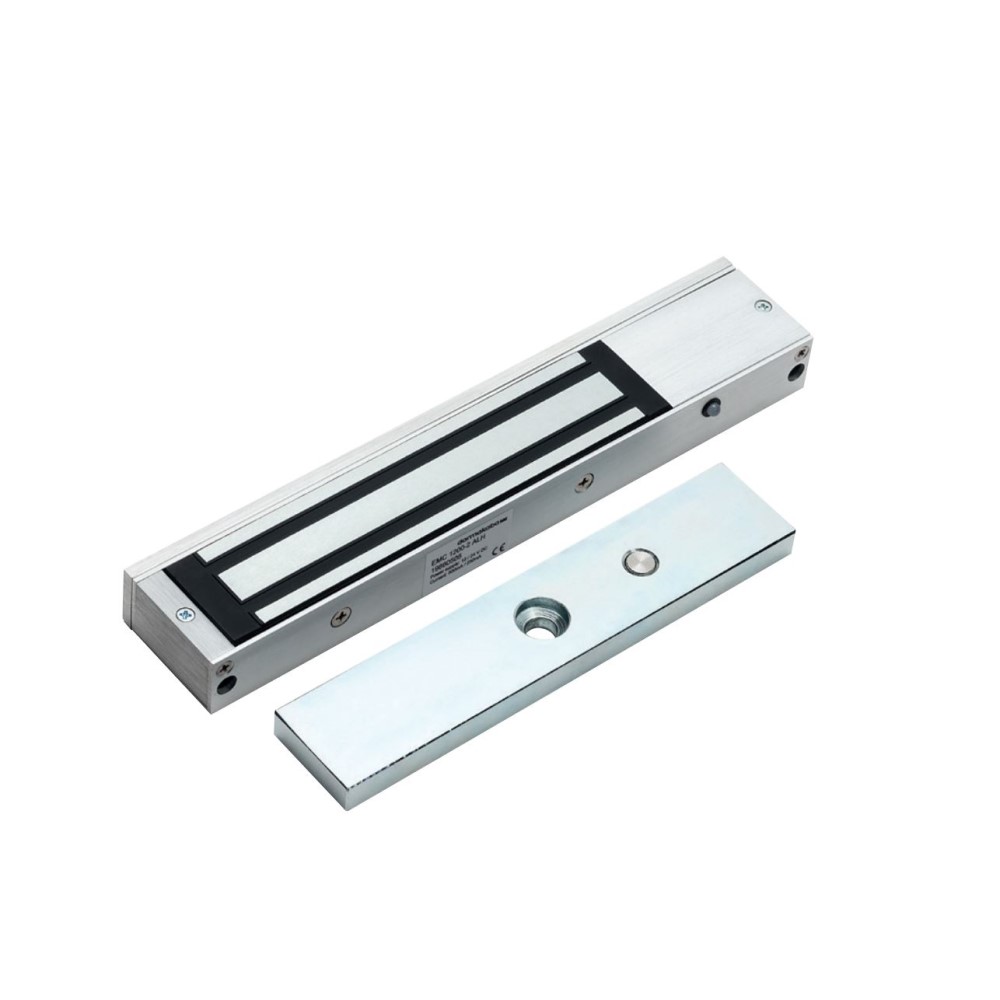

Dormakaba KML-2H Electric Mag Lock, Surface Mount, 270kg, 12/24V DC

DK-KML-2H
AVAILABLE TO ORDER
Dormakaba KML-2H Electric Mag Lock, Surface Mount, 270kg, 12/24V DC

The Dormakaba DK-KML-2H is a surface mounted electromagnetic lock which can be used on single doors. It has a holding force 270 kilograms and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and an LED Monitor. It is C-Tick, UL Listed and CE approved, with a 2-hour fire rating.

  • Surface mounted - single door
  • Built-in voltage spike suppressor
  • LED monitor
  • Lock sensor (hall effect IC)
  • Door sensor
  • Anti Residual Magnetism device (ARM)

  • Dimensions: 250L x 42W x 26D(mm)
  • Armature Plate Dimensions: 185L x 38W x 12.5D(mm)
  • Holding strength: 270kg
  • Operating voltage: 12/24VDC
  • Current draw: 500mA/12VDC, 250mA/24VDC
  • Material: brushed anodized aluminium housing, zinc plated steel armature

No description available for this product
  • Dimensions: 250L x 42W x 26D(mm)
  • Armature Plate Dimensions: 185L x 38W x 12.5D(mm)
  • Holding strength: 270kg
  • Operating voltage: 12/24VDC
  • Current draw: 500mA/12VDC, 250mA/24VDC
  • Material: brushed anodized aluminium housing, zinc plated steel armature
