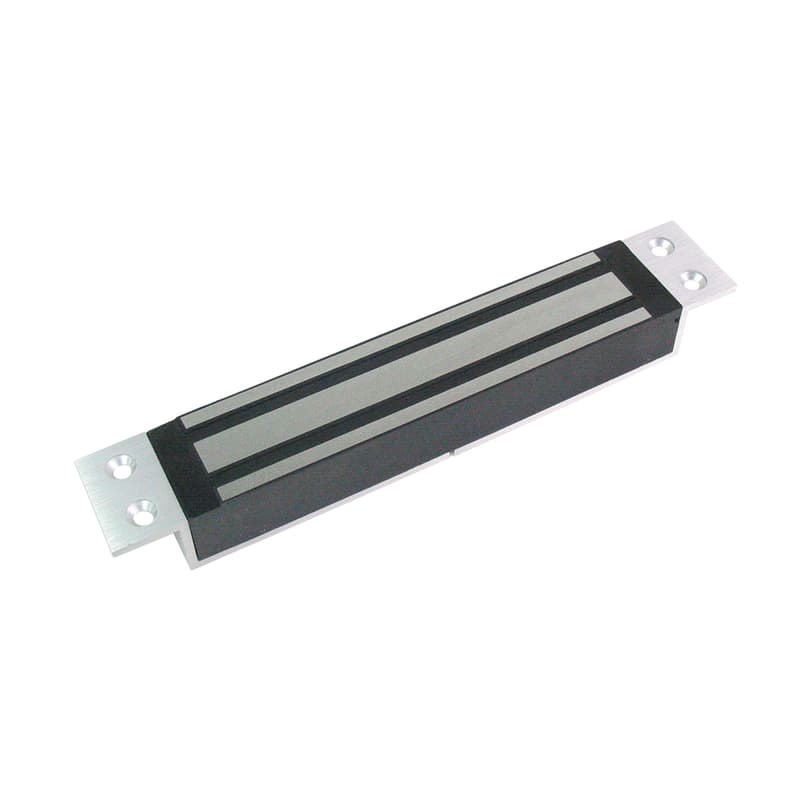

Dormakaba KML-2 Electric Mag Lock, Flush Mount, 270kg, 12/24V DC

The Dormakaba DK-KML-2 is a morticed-type electromagnetic lock which can be used on single and double sliding doors. It has a holding force 270 kilograms and dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved.

• Morticed type - single door, sliding door and double action door
• Built-in voltage spike suppressor
• Door status sensor (reed switch)
• Anti Residual Magnetism device (ARM)

Datasheets

• DK-KML-2 Datasheet.pdf

• Dimensions: 228L x 38W x 27D(mm)
• Armature Plate Dimensions: 185L x 38W x 12.5D(mm)
• Holding strength: 270kg
• Operating voltage: 12/24VDC
• Current draw: 500mA/12VDC, 250mA/24VDC
• Material: brushed anodized aluminium housing, zinc plated steel armature
