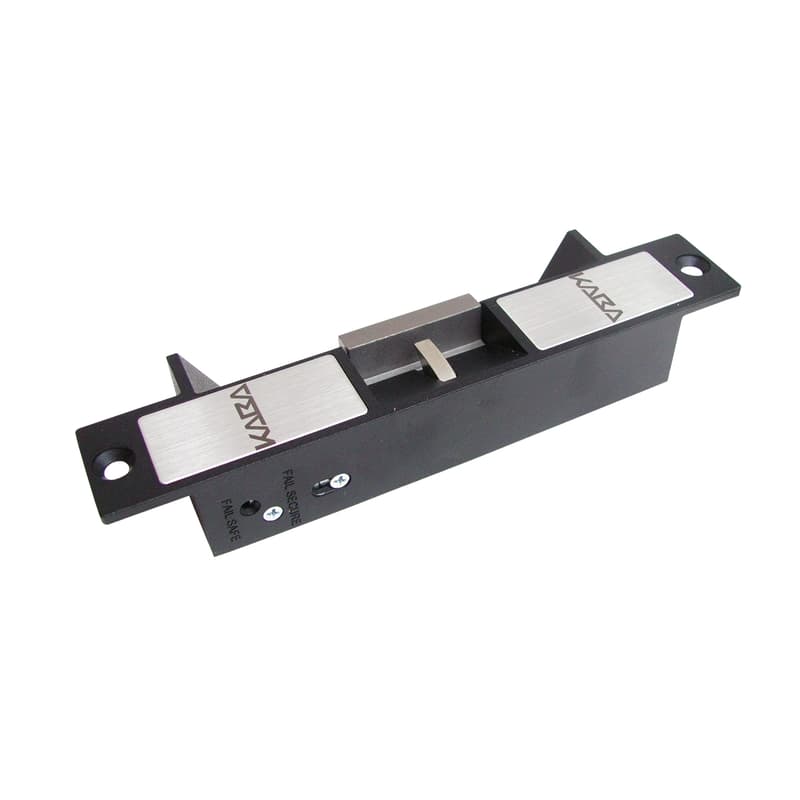

Dormakaba KES2200 Heavy Duty Electric Strike, Monitored, 12-28V DC/AC
DK-KES2200
AVAILABLE TO ORDER
Dormakaba KES2200 Heavy Duty Electric Strike, Monitored, 12-28V DC/AC
The Dormakaba DK-KES2200 is a high security electric strike, offering a single model which includes features such as switch monitoring of latch, keeper and solenoid, variable voltage from 12VDC/ AC to 28VDC/AC and a fast and convenient interchangeable fail safe/fail secure function (changeable on site). The construction of housing and keeper are of stainless steel and include pre-drilled holes for optional extension lips. Also included in package is an installation kit for metal frame installation.
- Fail safe/fail secure configurable
- Suits latch depth up to 15mm
- Monitored latch, keeper, and solenoid
- Pre-drilled for optional extension lips
- Includes mounting tabs for metal frame
- Solid stainless-steel construction
- Dimensions: 175L x 44W x 27D(mm)
- Holding strength: 920kg
- Operating voltage: 12/24VDC
- Voltage tolerance: +/-15 percent
- Current draw: 230mA/12VDC, 140mA/24VDC
- Operating Temperature: -10 - +45 degrees Celsius
- Humidity: 0 - 95 percent non-condensing
- Cycle tested: to 1 million cycles
- Material: stainless steel housing and keeper
Datasheets
No description available for this product
- Dimensions: 175L x 44W x 27D(mm)
- Holding strength: 920kg
- Operating voltage: 12/24VDC
- Voltage tolerance: +/-15 percent
- Current draw: 230mA/12VDC, 140mA/24VDC
- Operating Temperature: -10 - +45 degrees Celsius
- Humidity: 0 - 95 percent non-condensing
- Cycle tested: to 1 million cycles
- Material: stainless steel housing and keeper
